Manufacture Price Vp-145 (VP-2.5) CE Certificated R32 Single Stage Vacuum Pump

Product Description

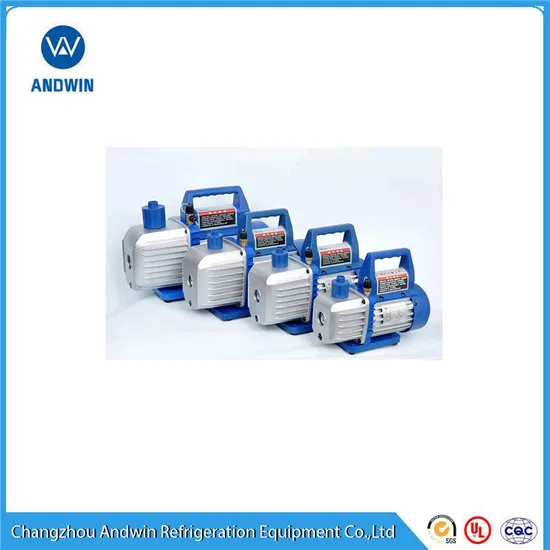

Manufacture price Vp-145 (VP-2.5) CE Certificated R32 Single Stage Vacuum Pump Detailed Photos
Our vacuum pump are with Automatic high speed flow and compensation function under the setting pressure.Comparing with fixed displacement vane pump,it has lower consumption and heat radiation;
Stable and noiseless in operation,especially suitable for machine tool and accord to requirements of housed activities.
It contains mechanical pressure adjustment;For an arbitrary choice
Our Advantages 1.CE certificate
2.LVD certificate
3.For air conditionin
4.Small,light,nicelooking.
Used for:
The vacuum pump is mainly applied in many fields, such as refrigeration maintain, printing machine, medical equipment, vacuum packing, gas analyze and thermoplastic molding ect.
Exact indication of internal system pressure on the vacuum gauge. The vacuum gauge can equip on all models of vacuum pump.
Product Parameters

Item NO.		VP115(VP-1)	VP125(VP-1.5)	VP135(VP-2)	VP145(VP-2.5)	VP160	VP180	VP1100
						(VP-3)	(VP-4)	(VP-5)
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
		42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
		50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		5Pa	5Pa	5Pa	5Pa	5Pa	5Pa	5Pa
		100 microns	100 microns	100 microns	100 microns	100 microns	100 microns	100 microns
Power		1/4HP	1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP
Inlet Port		1/4"Flare	1/4"Flare	1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		280ml	240ml	350ml	350ml	450ml	600ml	750ml
Dimensions(mm)		260x122x220	260x122x220	270x122x220	270x122x220	320x134x235	370x140x250	390x140x250
Weight		4.6kg	5kg	5.5kg	6kg	6kg	14kg	14.5kg

Pump oil:
All plugs reference of vacuum pump:
Packaging & Shipping
FAQ Q. What are the payment terms?
A. 30% deposit upon confirmation of order and 70% balance TT before shipment.

Q. Can the air compressor be customized according to preference?
A. We welcome all request and customization.

Q. Do the factory offer OEM products?
A. Yes we can do OEM if our clients authorized us the copyrights.

Q. Are spare parts readily available?
Spare parts are prepared . We stock all spare parts and will courier in urgent cases. Parts are readily available and affordable.
