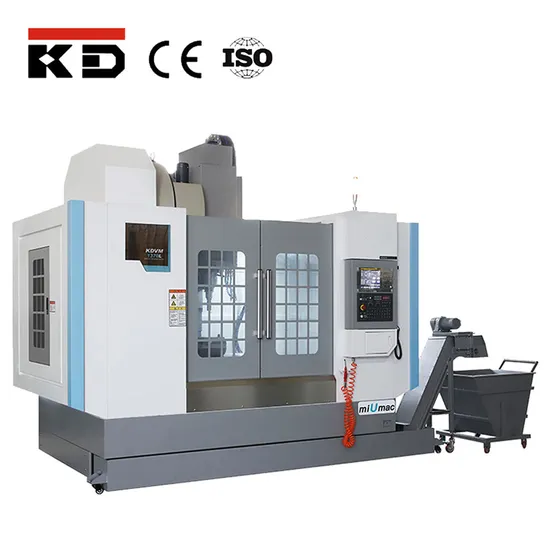

Kdvm1370L 1480X700mm High Speed CNC Machining Center CNC Milling Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM1370L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
4300X2300X2700mm
Specification
1480X700mm
Trademark
KADAI
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523
Product Description
KDVM1370L 1480X700mm High Speed CNC Machining Center PRODUCT SPECIFICATIONS| MODELS | KDVM1370L |
| TRAVEL | |
| X axis | 1300mm |
| Y axis | 700mm |
| Z axis | 650mm |
| Spindle center to column | 785mm |
| Spindle end to table | 150-800mm |
| TABLE | |
| Tablesize | 1400×710mm |
| T-slot(width×number×space) | 18mm×5×152.5mm |
| Max.table loading | 1000kg |
| SPINDLE | |
| Taper bore of spindle | BT50 |
| Spindle power | 15/18.5kw |
| Spindle speed | 6000rpm |
| FEED | 10 |
| X/Y/Z fast travel speed | 10/ 16/ 12m/min |
| Torque axis motors | 22/ 22/ 22Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф105mm |
| Max. tool size (Without adjacent tool) | Ф220mm |
| Max.tool length | 350mm |
| Max.tool weight | 15kg |
| Time (tool-tool) | 2.5s |
| ACCURACY | |
| Repeatability precision for X/Y/Z | ≤0.008mm |
| Min.Input | 0.001mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 3500x3390x2865mm |
| Net weight | 12000kg |
