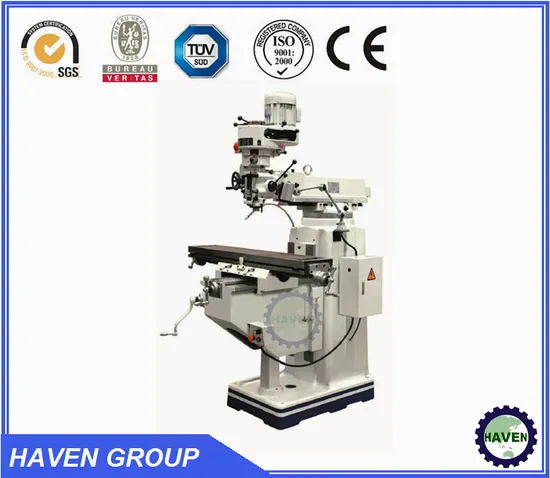

Turret Milling Machine X6325B
| US$99.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325B
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Manual
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
table size
254X1270mm or 254X1370mm
cross travel
380mm
vertical travel
400mm
spindle motor
2.25kw/3HP
Transport Package
Wooden Pallet
Specification
X6325B
Trademark
HAVEN
Origin
China
HS Code
8459590000
Production Capacity
100unit/Month
Product Description
X6325B Turret Milling MachineStandard accessories :
Draw bar,tool box and tools;working lamp;electric box;handle oil pump;
Optional accessories: X-axis power feed;Y-axis power feed;NT40 spindle;Cooling system;X/Y axis digital readout;machine vise;
52PCS universal clamping;
Main specification:
| item | unit | X6323A | X6323B | X6325 | X6325A | X6325B | X6325C | X6325D | X6330 | X6330A | X6333 | X6333A | ||
| Table size | mm | 230x1067;230x1246) | 254x1270;254x1370; | 305x1370;305x1500; | 330x1370;330x1500; | |||||||||
| Long travel | mm | 650;840 | 850;950; | 920;1000; | 840;1000 | |||||||||
| Cross travel | mm | 305 | 420 | 400 | 400 | 420 | 380 | 368 | ||||||
| Vertical travel | mm | 400 | 420 | 430 | 530 | |||||||||
| T-slot No. and size | 3x16 | |||||||||||||
| Ram travel | mm | 312 | 470 | 500mm | ||||||||||
| Distance from spindle nose to table surface | mm | 0~415 | 0~405 | 0~350 | 0~450 | |||||||||
| Distance from spindle center to column | mm | 170~482 | 140~609 | 108~760 | ||||||||||
| Spindle hole taper | standard): R8;optional: ISO30 / ISO40 | standard) ISO40 | ||||||||||||
| Spindle travel | mm | 127mm | ||||||||||||
| Spindle speed | Rpm | standard: shift grade | 65~4500 | standard: shift grade | 65~4500 | |||||||||
| optional: variable) | 65~4200 | optional: variable | 60~3750 | |||||||||||
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | |||||||||||||
| Spindle motor | HP | 3 | 5 | |||||||||||
| Head swivel | ° | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Head tilting | ° | 45 | 45 | 45 | 45 | 45 | FIX | 45 | 45 | FIX | 45 | FIX | ||
| Dimension of package | one unit per case | mm | 1400x1476x2030 | 1516x1550x2080 | 1566x1650x2080 | 1800x2016x2180 | ||||||||
| two units per case | mm | 1450x1570x2080 | 1650x1750x2170 | 1720x1800x2175 | 1800x2280x2180 | |||||||||
| three unitsr per case | mm | 1450x2180x2080 | 1650x2285x2235 | |||||||||||
| Machine weight | kg | 1100 | 1160 | 1550 | 1380 | 1420g | 1590 | 1590 | 1700 | 1750 | 2300 | 2350 | ||
