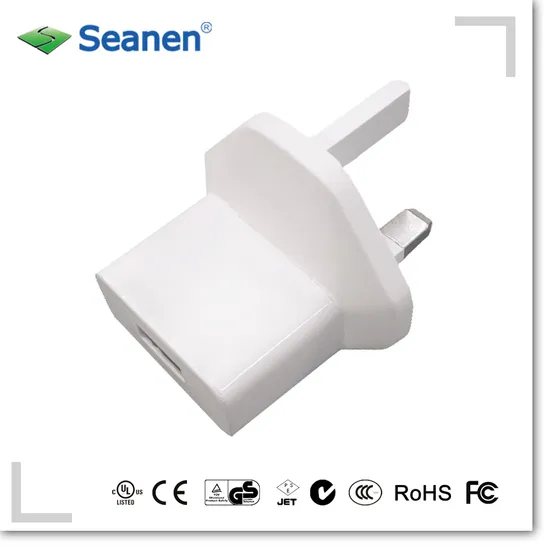

USB Travel Charger for Tablet, Phone, Mobile Devices

Product Description

5Watt travel charger
1) New design, Exquisite, Extra small size
2) Meet the highest efficiency level USA DOE VI and Europe COC V5 Tire 2.
3) USB inlet
4) Polished case
Specification
1) Input voltage: 90-264VAC
2) Input frequency: 50/60Hz
3) Input current: 0.18A max
4) Surge current: 50A max
5) Output voltage and current: 5VDC 1A Max
6) Efficiency: Meet DOE VI>73.62%; COC V5-2>73.77%.
7) Power consumption (no loading): <0.1W
8) Ripple: < 120mV
9) Compliant with RoHS, PAHs, REACH
10) Color: Black and white are available
Certificates and approvals
UL/cUL, GS, CE, UKCA, C-tick, CB, FCC, PSE
Protections
Short circuit protection
Over voltage protection
Over current protection
Envionmental requirements
Operating Temperature: 0-45°C
Operating Relative humidity: 10-90% RH
Storage Temperature: -20-70°C
Height above sea level: 0-5000m

SPECIFICATION
Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	Inrush current	50A Max, 240VAC at max load
	Leakage Current	0.25mA max
	Energy efficiency	DOE VI, COC V5 Tire 2
Output	Voltage	5VDC
	Current	1A Max
	Power	5W
	Load regulation	+/-5%
	Hold-up time	10ms minimun at 115V AC / full load
Connector	DC cable	2468 2C 6FT or others
	DC plug	Per customer request
Protections	Short circuit protection	Yes
	Over voltage protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0-45°C
	Storage Temperature	-20-70°C
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25'C
	LED indicator	/
	Size	35.8*20.1*34mm (L*W*H)
Safety Approvals	UL/cUL/GS/CE/UKCA/CB/C-TICK/CCC/PSE/KO/EMC/FCC
Standards	UL60950-1, IEC/EN62368-1, AS/NZS60950-1, J62368, FCC part 15 class B
Compliance	RoHS, PAHs, REACH, WEEE
