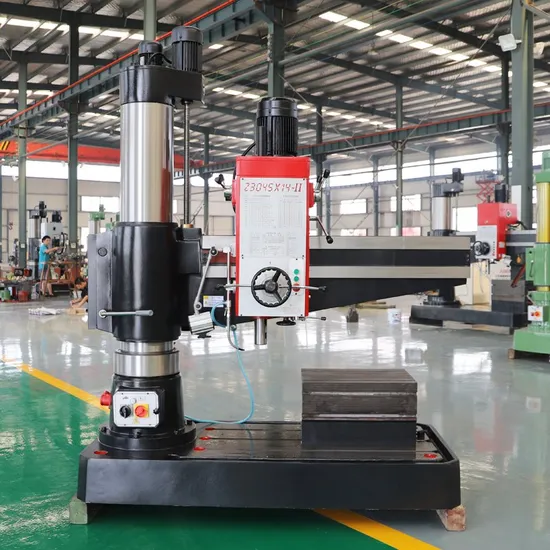

Z3045 Mechanical Rocker Arm Drilling Machine Single Column Radial Drilling Machine

Product Description

Product Description

Model	Unit	Z3045x14	Z3045x13
Max.drilling capacity	mm	45	45
Distance spindle axis to column generating line	mm	360-1000	360-1300
Diameter of column	mm	240	230
Spindle taper		MT4	MT4
Spindle travel	mm	280	280
Spindle speed range	r/m	22-1220	221220
Spindle speed number		6	6
Range of Spindle feed	mm/r	0.01~0.25	0.01~0.25
Spindle feed number		3	3
Distance spindle nose to working surface of base	mm	260~1050	260~1050
Dimension of worktable	mm	400×450×400	400×450×400
Overall size	mm	1500×705×2200	1500×705×2200
Power of Main motor	kw	3	3
Machine weight	kg	1500	1300
Packing dimension	mm	2300×1100×2300	2300×1060×2300

Radial drilling machine can also be used as cross drills. The spindle box can move left and right
on the rocker arm and rotate ±180° with the rocker arm column. The rocker arm can also be
raised and lowered along the outer column to adapt to processing different workpieces. The
radial drilling machine has a wide range of processing and can be used to drill screw holes,
threaded holes and oil holes of large workpieces. Suitable for boilers, bridges, rolling stock,
shipbuilding, machinery industry, and other industries. The radial drilling machine is mainly
composed of a base, an inner column, an outer column, a rocker arm, a headstock and a worktable.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.
