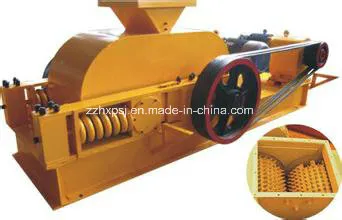

Fired Clay Double Teeth Roller Crusher for Sale
| US$5,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
2PGC400*250
Type
Teeth Roller Crusher
Application
Construction, Mineral Industry, Stone Industry
Drive
Motor Driving
Crushing Style
Extruding & Milling
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Thread Process
Certification
CE, ISO
Condition
New
Color
Green
Double Toothed Crusher Pirce
Negotiate
Double Toothed Crusher Colour
as Request
Double Toothed Crusher Installation
Engineer Guide
Double Toothed Crusher Warranty
One Year
Transport Package
Standard Container, Small Parts by Wooden Box
Specification
CE
Trademark
HengXing
Origin
China
Production Capacity
100sets One Year
Product Description
Double Toothed Roller Crusher: Toothed Roller Crusher Processing ability: 70-460 t/hFeeding granularity: 100-800 mm
Dimensions: 2100×2450×2000-2500×4360×2400 mm
Applied material: coal, pebble, perlite, limestone
Toothed roll crusher is mainly composed of driving tooth, reducer, hydraulic coupler, electromotor, motor-driven fuel feed pump, passive toothed roll, arch toothed plate, side toothed plate, and side toothed plate base, lower frame and velometer.
Toothed roll crusher mainly splits and crushes the materials using unique wear-resisting toothed roll rotating with high speed, forming high-productivity mechanism. This toothed roll crusher is mainly composed of driving device, rack part, crushing roll, and mechanical spring device and link gear. Toothed roll crusher has very big crushing ability, and the electromotor is connected with the reducer with Limit type hydraulic coupler to prevent dynamic overload, so that the sensor is safe and reliable. The adjustment of the space between the two rolls belongs to hydraulic adjustment and the bearing of the rolls are lubricated centrally.
Techncial Parameters:
| Model | Roller diameter (mm) | Roller length (mm) | Max. Feeding Size (mm) | Discharging size(mm) | Output (t/h) | Motor power (kw) | Total weight(t) | Overall dimension (L×W×H) (mm) |
| 2PGC600×500 | 600 | 500 | 200-450 | 15-100 | 30-60 | 7.5×2 | 3800 | 2450×1800×950 |
| 2PGC600×800 | 600 | 750 | 300-600 | 20-120 | 60-100 | 11×2 | 7200 | 4500×1900×1350 |
| 2PGC800×1000 | 800 | 1000 | 500-800 | 30-150 | 100-160 | 22×2 | 12600 | 2550×2050×1100 |
| 2PGC1000×1000 | 1000 | 1000 | 700-950 | 30-200 | 150-200 | 45×2 | 18800 | 2780×4100×1550 |
| 2PGC1200×1200 | 1200 | 1200 | 800-1050 | 30-200 | 180-250 | 55×2 | 29500 | 2780×3200×1980 |
| 2PGC1500×1200 | 1500 | 1200 | 1000-1150 | 30-200 | 200-300 | 75×2 | 38600 | 8010×4500×2050 |
