High Speed Horizontal and Vertical Milling Machine X6332

Product Description

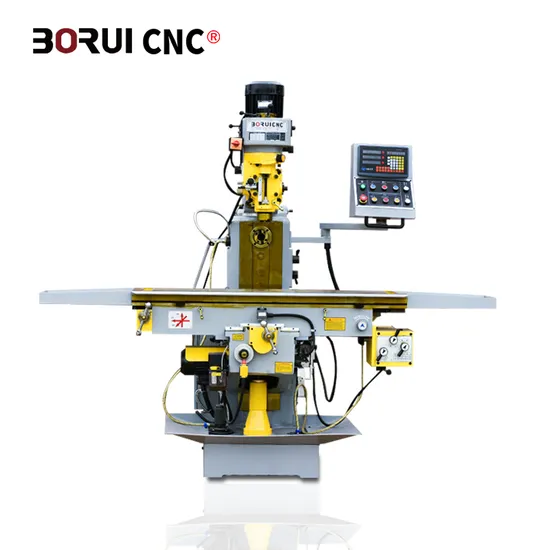

High Speed horizontal and vertical milling machine X6332
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The main feature :
1.Auto feed on two axis,motorized lift on Z axis
2.Hardening treatment,rectangular guide way
3.Optional High speed turret milling head, high precision
4.The structure of rectangular guide rail, the machine itself is more stable, more accurate.
5. X6332C milling machine with turret milling head
The main specification :

Specification	X6332B	X6332C
Spindle taper	7:24 ISO40 Vertical	NT40 Vertical
	NT 40 Horizontal	NT 40 Horizontal
Milling head tilt (left/right)	90°	90°
Spindle travel (mm)	127	127
Spindle speeds range (r.p.m)	115-1750	66-4540(vertical 16 step)
	40-1300 (horizontal 12 step)	40-1300 (horizontal 12 step)
Distance from spindle to column(mm)	180-630	180-630
Distance from spindle to work table (mm)	130-550	130-550
Arm travel (mm)	450	450
Rotary arm	360°	360°
Table size (mm)	1500x320	1250x320
Max. travel of table (mm)	600x300x420	800x300X420
T-slot number width distance (mm)	3/14/70	3/14/70
Max load weight (kg)	350	350
Main motor power (kw)	2.2 Vertical	2.2 Vertical (optional:3.7)
	2.2 Horizontal	2.2 Horizontal
Motor of table power feed (w)	750	750
Up/down motor of head stock(Kw)	1.1	1.1
Cool ant pump motor (w)	40	40
Packing size(mm)	1550x1650x2200	1600x1650x2200
N.W/G.W(kg)	1500/1700	1700/1900

Standard accessories: Optional Accessories:
1.Drill chuck 1.DRO on X, Y, Z--AXIS
2.Mill chuck 2.Clamping kit
3.Inner hexagon spanner 3.Universal dividing head
4.Work light 4.Rotary work table.
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
9.Machine vice
10.Horizontal milling arbor
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
