High Reliability Multi-Channel Electric Optical Delay Line for Optic Fiber Sensor

Product Description

Features:
Unique delay mechanism
continuous and reliable operation
Wide delay range
High delay accuracy
High reliability
Applications:
Radar testing and calibration
Phased antenna array
Optical coherence mography X-ray photography method
Light interference measuring method
Optic fiber sensor
Specification:

Parameters	Specifications
Wavelength range(nm)	1260-1650,1310-1550,Customizable 850,980,1060
Calibration wavelength Calibration wavelenth(nm)	1310-1550
Delay range	0~100 ps
	0~330 ps
	0~700 ps
	0~1500ps
Distinguishability	0.05ps
Insertion loss	Typical value 0.8dB,Maximum value 1.2dB
Repetitive	±0.5ps
Insertion loss variation	±0.2dB over entire range for 0- 100ps model
	±0.3 dB over entire range for 0- 330ps model
	±0.4dB over entire range for 0- 700ps model
	±0.8 dB over entire range for 1500PS model
Return loss	> 55 dB
Extinction loss	>18 dB
Transmitted optical power	Typical optical power value 500mW/Customizable 5W/10W/15W/20W/30W
Operating temperature	0-~65ºC
Storage temperature	-40~85ºC

Ordering Information:

ZG	Channel	Wavelength	Range	Fiber type	Fiber length	Connector
	2=2 Channel 4=4 Channel 8=8 Channel 16=16 Channel X=X Channel 5=XXX	1=1064nm 2=1310nm 3=1550nm	10=100ps 33=330ps 70=700ps 150=1500ps XX=Others	1=SMF-28E 2=PM1550	1=1.0M	NE=None FA=FC/APC FC=FC/PC SA=SC/APC XX=XXX

Product:

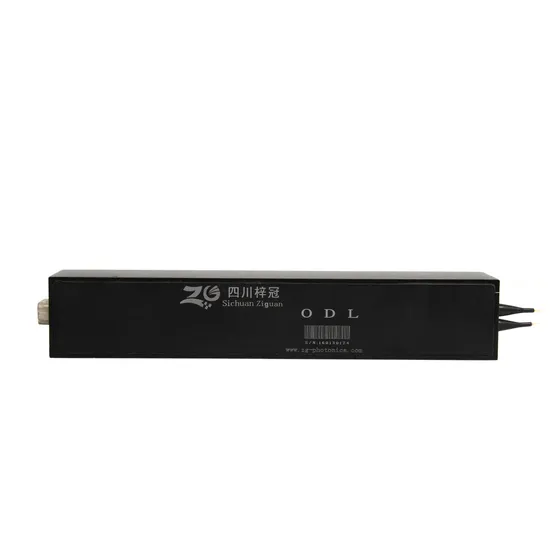

Flange output Optical fiber output
