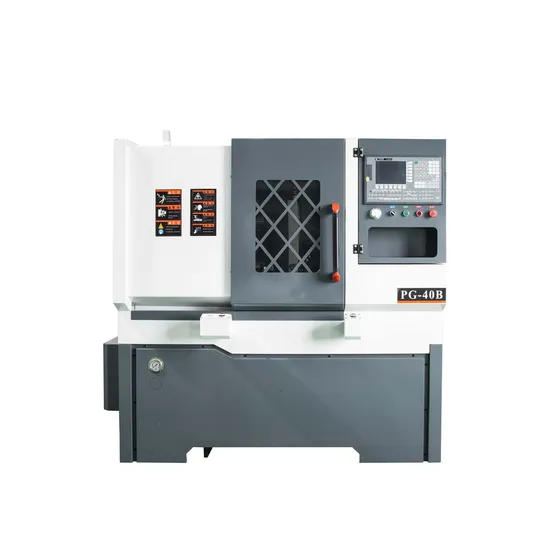

Heavy Duty Automatic CNC Metal Lathe Optional Vertical Power Head with Y Axis CNC Milling and Turning Machine with GSK System
| US$7,290.00-8,290.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PG-40B
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Other Material Cutting
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
NC
Processing Precision
<=0.015
Performance Classification
Economical CNC Machine Tools
Condition
New
Clamping
Hydraulic(Pneumatic Is Optional)
Guide Rail
Flat Linear Guide Rail
System
GSK, Syntec
System Language
English
Machine Weight
1700kg
X/Z Drive
680/480 mm
Spindle Bore
48
Installable Accessories
Chat with Supplier
Tool
Row Tool Post*3
Transport Package
Wooden Box
Specification
1700*1400*1800mm
Trademark
Xinshiheng
Origin
Taizhou
HS Code
8462111090
Production Capacity
1000 Pieces/Year
Packaging & Delivery
Package Size
190.00cm * 160.00cm * 200.00cm
Package Gross Weight
1900.000kg
Product Description
Product Description
Detailed Photos
Technical Parameter
| No. | Name | Quantity | supplier | Remark |
| 1 | System | 1 set | GSK | 980TB3i |
| 2 | Spindle motor | 1 set | Lilong motor | 5.5KW |
| 3 | Servo Driver | Each 1 set | KND original | X axis 6 N Z axis 6 N |
| 4 | Spindle front bearing | 1set | Renben | 7215DBB |
| 5 | Spindle rear bearing | 1set | Renben | 7213DBB |
| 6 | X,Z axis screw bearing | Each 1 set | Luoyang Bearing | 720604 Flange |
| 7 | X,Z axis ball screw | Each 1 set | Taiwan SHAC | X axis 2510*655 Z axis 3210*922 |
| 8 | X axis linear guide rail | 2 pcs | Taiwan SHAC | Ball 25*740 |
| 9 | Z axis linear guide rail | 2 pcs | Taiwan SHAC | Ball 30*960 |
| 10 | Spindle | 1 set | Xinshiheng | A2-5 |
| 11 | Tool post | 4 pcs | Xinshiheng | |
| 12 | Cutting fluid pump | 1 unit | Zegong | 90W |
| 13 | Auto lubrication system | 1 unit | Yuhuan Hejin | Gear pump |
| 14 | X,Z axis coupling | Each 1 | Jiangsu | 17-19 |
| 15 | Clamping | 1 set | Dingchang | Hollow 160mm chuck 1248 oil cylinder |
| 16 | Spindle frequency converter | 1 unit | Xinshiheng | 5.5KW |
Machining Capacity | |||
| Maximum turning diameter of the bed | mm | 380 | |
| Maximum turning diameter of the slide | mm | 140 | |
| Maximum machining diameter | mm | 160 | |
| Maximum machining length | mm | 200 | |
| Bar machining diameter | mm | 40 | |
| Stroke | X axis stroke | mm | 680 |
| Z axis stroke | mm | 480 | |
Spindle | speed | RPM | In 3000 |
| Spindle nose) | A2-5 | ||
| Spindle hole diameter | mm | 48/56 | |
| Bearing model | 7215/7213 | ||
Tool post | Tool post form | Straight mounted type | |
| Tool install quantity | PCS | 8 | |
| the height of the rectangle tool shank | mm | 20 | |
| Diameter of boring bar shank | mm | 20 | |
Tailstock | Tailstock stroke | mm | null |
| Diameter of tailstock sleeve | mm | null | |
| Taper of tail seat sleeve cone hole | null | ||
| Tailstock sleeve stroke | mm | null | |
| Feeding velocity | Fast feeding velocity | m/min | X:12/ Z:20 |
Motor | Spindle motor | kW | 5.5 |
| Power head motor | kW | PCS | |
| Feeding shaft motor | NM | X: 6 / Z: 6 | |
| Hydraulic pump motor | kW | 1.5 | |
| Cutting fluid motor | W | 90 | |
| Supply power | Power supply power | kVA | 7.5 |
Tank capacity | for hydraulic equipment | L | 40 |
| for lubrication oil | L | 2 | |
| for cutting fluid | L | 60 | |
| Machine Size | Height of machine | mm | 1800 |
| The height from the ground to the centerline of the spindle | mm | 110 | |
| Floor space | mm x mm | 1 7 0 0 x 1400 | |
| Weight | kg | 1700 | |
Company Profile
Certifications
Customer Reviews
Exhibitions
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
