Energy-Saving Mini 3 Pole Vacuum LC1d Magnetic Industrial Electrical AC Contactor

Product Description

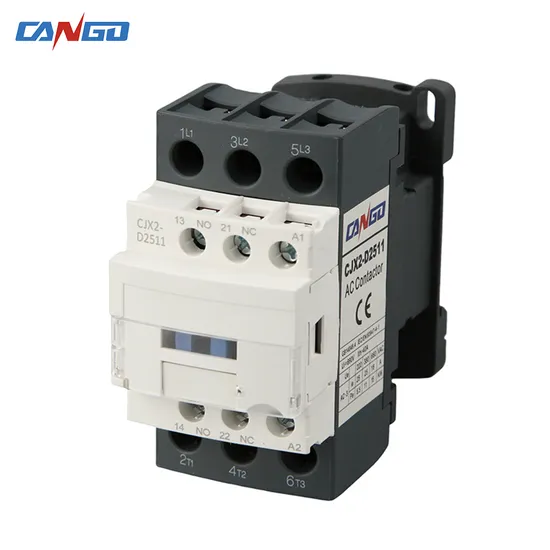

PRODUCT NAME: AC CONTACTOR
MODEL NUMBER:CJX2-D(LC1-D)
1.GENERAL
1.1Certificate:CE;
1.2 Electric rating:AC50/60Hz,690V,up to 620A;
1.3 Application: remote making & breaking circuits, protect circuit from over-load when assembling with thermal over-load relay, frequent start-up and control of AC motor;
1.4 Utilization category: AC-3, AC-4;
1.5 Altitude: ≤ 2000m;
1.6 Ambient temperature: -5 C~ +40°C;
1.7 Mounting category: III;
1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5° ;
1.9 Standard: IEC/EN 60947-4-1.

Technical Data

Items	Model		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32
Pole			3/4
Auxiliary Contact			1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC
Rated conventional heating current (A) AC-1			20	20	30	40	50
Rated Operational Current(A)	380/400V	AC-3	9	12	18	25	32
		AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3	6.6	8.9	12	18	21
		AC-4	1.5	2	3.8	4.4	7.5
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	220/230V AC	2.2	3	4	5.5	7.5
		380/415V AC	4	5.5	7.5	11	15
		660/690V AC	5.5	7.5	10	15	18.5
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC Coil (V)			24,36,48,110,220

Items	Model		CJX2-D40	CJX2-D50	CJX2-D65	CJX2-D80	CJX2-D95
Pole			3/4
Auxiliary Contact			1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC	1 NO+ 1NC
Rated conventional heating current (A) AC-1			60	80	80	110	110
Rated Operational Current(A)	380/400V	AC-3	40	50	65	80	95
		AC-4	18.5	24	28	37	44
	660/690V	AC-3	34	39	42	49	49
		AC-4	9	12	14	17.3	21.3
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	220/230V AC	11	15	18l.5	22	25
		380/415V AC	18.5	22	30	37	45
		660/690V AC	30	37	37	45	45
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
DC Coil (V)			24,36,48,110,220

Items	Model		CJX2-D115	CJX2-D150	CJX2-D170	CJX2-D205	CJX2-D245
Pole			3	3	3	3	3
Rated conventional heating current (A) AC-1			200	200	200	275	280
Rated Operational Current(A)	380/400V	AC-3	115	150	170	205	245
		AC-4	50	65	70	75	85
	660/690V	AC-3	70	80	100	108	115
		AC-4	25	32	35	38	40
Rated insulation Voltage(V AC)			690	690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	380/415V AC	55	75	75	90	110
		660/690V AC
			80	100	100	110	140
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600

Items	Model		CJX2-D300	CJX2-D410	CJX2-D475	CJX2-D620
Pole			3/4	3/4	3/4	3/4
Rated conventional heating current (A) AC-1			360	430	580	850
Rated Operational Current(A)	380/400V	AC-3	300	410	475	620
		AC-4	124	150	185	188
	660/690V	AC-3	190	235	290	360
		AC-4	60	72	85	170
Rated insulation Voltage(V AC)			690	690	690	690
Power of controlled 3-Phase Cage motor(AC-3)	kW	380/415V AC	160	200	250	335
		660/690V AC
			220	280	330	450
AC Coil (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
