High Advanced Hoist Carbonizing Stove Machine for BBQ Briquette Making

Product Description

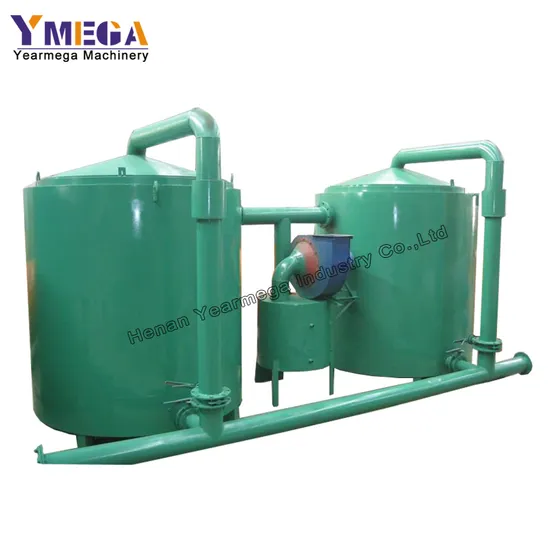

High Advanced Hoist Carbonizing Stove Machine for BBQ briquette making
As a professional charcoal machines manufacturer in China, our company always adhere to the principle of quality first.
The information of the lifting type carbonizing stove machine you may concern:
Carbonizing time: 6-8 hours
Capacity per batch: 600-700kg per batch
Capacity per day 24 hours: 2ton/day
Detail explanation:
Hoisting type carbonizing stove machine can produce 600-700kg charcoal per batch, carbonizing period is 6-8 hours per batch, after we finish the carbonizing process, we take the internal tank out by hoisting device, then we can take the second internal tank into the furnace for carbonizing. At the same time the first tank of charcoal is cooling, the complete set includes one furnace with 3 internal tanks, it requires a hoisting device to take the tanks in and out. The users can prepare hoist locally, we can also include it.
Main Technical Parameters of Carbonizing stove machine

Model	Capacity(T/D)	Batch capacity	No. of internal tanks	Size(mm)	Weight(kg)
DTH1000	2T/24hours	600-700kg/batch	3 pcs	2000*2000*2200	4000

Introduciton of carbonizing stove oven
Carbonization Stove adopts advanced hot air carbonizing processing technology. Which greatly increased carbonizing ratio (increased from about 88% to 99%) and shortened the carbonizing time (from 24 hours to 6-8 hours), easy operation, higher safety & efficiency, energy saving and environment protection.
This furnace is ideal equipment for sawdust wood briquettes into charcoal briquette. The wood briquette will have anoxic distillation charring in the furnace.
Due to its rational structure, the furnace only needs small heat consumption. It adopts water cooling system, thus can speed up the cooling process, improve the quality of charcoal, and shorten the charring period.
Our latest design adopts filtering system with cooling system, it will filter smoke, really an ideal machine with advantage of energy saving and environmental protection.
Put the biquette rod made by briquette press machine or raw wood logs into the furnace from the feed inlet, ignite the material from the ignition port, the briqutte rod or wood will be heated under the anoxic condition and generate combustible gas-tar and carbon, Smoke is discharged after cooling and cleaning through the pipeline on the roof - Water Cooling Box - air blower.
Other Biomass Processing machinery
Packing and shipping
1. The carbonization furnace big as it will be generally nude and loaded in the container directly.
2. We will provide the machine as quickly as possible after the customer playing the order, also with high capacity. we will track the shipping for customer whenever they need.
Our Services
1. We will give detailed introduction of the automatic high efficient carbonizing stove machine according to the client capacity requirement.
2. Share any information about the Automatic high efficient Carbonizing Furnace that the clients need, like detaield pictures, video,etc
3. Design full briquette making line for client.
4. Give detailed instruction manual and video to the customers.
Contact information:
If you have interest in this High Advanced Hoist Carbonizing Stove Machine for BBQ briquette making, kindly please send us inquiry.
