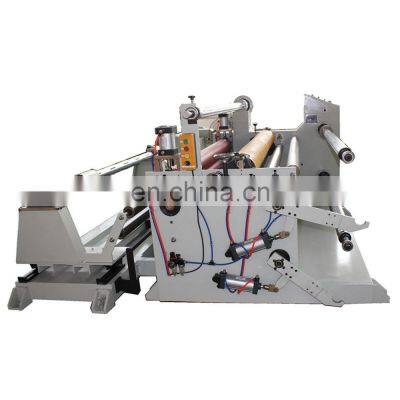

1800mm jumbo plastic paper film cloth fabric roll slitting rewinding machine

Product Description

Product Description
jumbo plastic roll slitting rewinding machine DP-1800 film slitting and rewinding machine Main ParametersModelDP-1800Feeding width1800mmMain power 5.5kwSpeed110m/minSize2400*2000*1300mmWeight2000kgUnwind diameter800mmRewind diameter450mmPrecision±0.10mmVoltage380v 50hzTotal power8.5kw Funcional characteristics:This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection ofr main engine, single electric motor, double electric motors.Purpose:It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc. Charatertistics and Functions:1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.2. Imported magnetic powder clutch is adopted to control the tension.3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.4. Automatic detection, rectification and metering can be realized.5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain6. Clockwise and counter-clockwise rewinding systemAfter-service:1. Warranty for machine: 12months2. After-service: A reply within 24 hours3. A free training in our factory available before delivering machines _______________________________________________________________________ 1. Technique Data Max material width : 1800mmFeeding Diameter : 800 mmRewinding diameter : 450mmSlitting accuracy :±0.1mmVoltage:380V 50HZMain Motor Power :5.5kw (2 motor power) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:(0.4-0.6)Mpa(customer-owned)Finished products Min. Width by standard slitting :25MMMain Machine size :2650*1600*1600mmFeeding Machine size : 2550*880*1200mmWeight : 2.2T2, Feeding DeviceFeeding Air Expansion Shaft (3”Pad Shaft) 2 Setsmagnetic powder brake 100N 1 Set Film release Magnetic Powder Brake 50N 1 SetFeeding Tension Control System 2 SetsCorrection System(Taiwan Gas and Liquid correction) 1 set 3. Slitting Part Upper Circular knife shaft Dia 65(upper slitter Dia 110*75*1) 1 SetUnder Circular knife shaft Dia 65(upper slitter Dia.90*65*10)1 setManual fine-tuning lock device 4. Reeling endReceiving Flatulence axis(3″Pad shaft) 2 Setsmagnetic powder clutch 50N 2 Setshe receiving tension control system 2 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set5. Operator control box 1 Set6.Electric control panel 1 Set7. Function Profilefrequency control of motor speed, operation more easy. Control more accurate.Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15MIndependent fan waste discharge. Double motor configuration,The scroll of rewinding can be positive and negative transfer . 8. Slitting partSlitting up and down cutter 10 setsCircle tool apron 10 setsSlitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs 9. Packing : Wooden case packing
