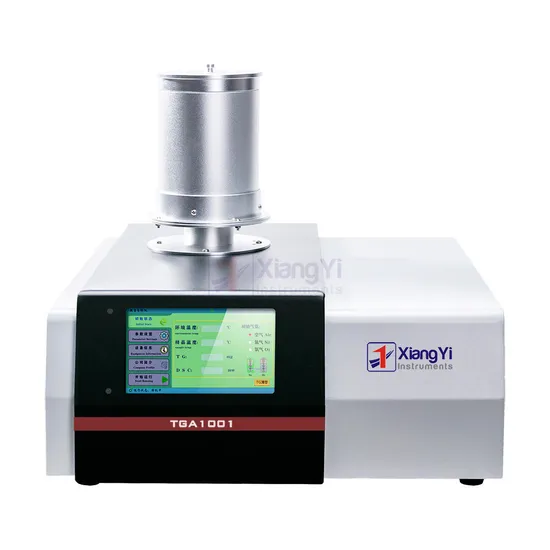

Thermo Gravimetric Analyzer Tga

Product Description

Product introduction
Thermo gravimetric analyzer (TGA) is in TG, temperature, the temperature or cooling process, observe the quality with temperature or the change of time, the purpose is to study material thermal stability and components. Widely used in plastic, rubber, coating, drugs, catalyst, inorganic materials, metal materials and composites fields of research and development, optimizing process and quality control
Measurement and research material following characteristics
Thermal stability, decomposing process, adsorption and desorption, oxidation and reduction, ingredients quantitative analysis, additives and filler influence, moisture and volatiles, reaction kinetics.
Structural advantages The furnace body is heated by double-row winding of precious metal nickel-chromium alloy wire, which reduces interference and is more resistant to high temperatures. The tray sensor is made of precious metal nickel-chromium alloy, which has the advantages of high temperature resistance, oxidation resistance, and corrosion resistance. The power supply, circulating heat dissipation part is separated from the host, reducing the influence of heat and vibration on the micro-thermal balance. It adopts an open-top structure, which is convenient to operate. It is difficult to move the furnace body up to place the sample, and it is easy to cause damage to the sample rod. The host uses a water area constant temperature device to isolate the thermal influence of the heating furnace body on the chassis and the micro-thermal balance. The furnace body can be replaced according to customer requirements
Controller and software advantages Using imported 32bit ARM processor Cortex-M3 core, sampling speed, processing speed is faster. 2.24bit four-channel sampling AD collects DSC signal, TG signal and temperature T signal. The power supply and water circulation part are individually controlled by 8bit single-chip microcomputer to separate the host and the cooling part without interfering with each other, but the two are closely connected, and the cooling part is controlled by the host. The USB two-way communication is adopted between the software and the instrument to fully realize remote operation. The parameter setting of the instrument and the operation and stop of the instrument can be carried out through the computer software. 7 inch full color 24bit touch screen, better man-machine interface. TG calibration can be achieved on the touch screen
Technical parameters

Model	TGA1001	TGA1003	TGA1005
Temperature range	RT ~1150°C	RT ~1350°C	RT ~1550°C
Temp. resolution	0.1 °C	0.1 °C	0.1 °C
Temp. fluctuation	±0.1°C	±0.1°C	±0.1°C
Heating rate	1 ~ 80 °C / min	1 ~ 80 °C / min	1 ~ 80 °C / min
Cooling rate *	1 ~ 20 °C / min (optional)	1 ~ 20 °C / min (optional)	1 ~ 20 °C / min (optional)
Temp. control mode	Rising, Cooling, Constant	Rising, Cooling, Constant	Rising, Cooling, Constant
Cooling time	15min (1000°C ~ 100°C)	15min (1000°C ~ 100°C)	15min (1000°C ~ 100°C)
Balance measuring scope	1mg ~ 2g (Can be extended to 30g)	1mg ~ 2g (Can be extended to 30g)	1mg ~ 2g (Can be extended to 30g)
Sensitivity	0.01mg	0.01mg	0.01mg
Constant temperature and time	0 ~ 300min (set arbitrarily)	0 ~ 300min (set arbitrarily)	0 ~ 300min (set arbitrarily)
Display	Liquid crystal display (LCD)	Liquid crystal display (LCD)	Liquid crystal display (LCD)
Atmosphere	inert, oxidizing, reducible, static & dynamic
Atmosphere device	Built-in gas flow meter, including switch two way gas and control flow volume
Software	Intelligent software can record TG curves automatically, Processing data and print experimental statements
Data interface	USB interface, special software (irregularly free upgrades)
Power	AC220V 50Hz	AC220V 50Hz	AC220V 50Hz
Dimensions	490*400*343 mm	490*400*343 mm	490*400*343 mm

Mo sample's relationship between the TGA, time, and temperature sample's relationship between thermo gravimetric (TGA), enthalpy change (DSC), time, temperature.
Packing List

Item name	Qty
Host	1 set
software	1 copy
power cord	1 pc
data cable	1 pc
Sample crucibles	100 pcs
10A fuse	2 pcs
manual	1 copy
two trachea	2 pcs
Tweezers and sample spoon	1 set
