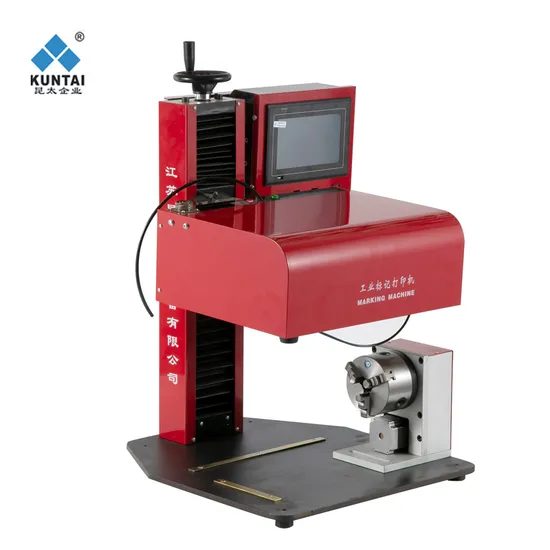

Monthly Deals Customized 300X200mm Large Area Metal Pneumatic DOT Pin Marking Engraving Machine

Product Description

Specification

Model	KT-PS01-R	KT-PS02-R	KT-PS03-R	KT-PS04-R
Standard Marking Area	120mm X 80mm	150mm x 130mm	200mm x 150mm	300mm x 200mm
Marking speed	30mm~40mm/s	30mm~40mm/s	30mm~40mm/s	30mm~40mm/s
Impact Frequency	300times/s	300times/s	300times/s	300times/s
Repeated Accuracy	0.001mm	0.001mm	0.001mm	0.001mm
Marking Depth	0.1mm~0.2mm (depends on material)	0.1mm~0.2mm (depends on material)	0.1mm~0.2mm (depends on material)	0.1mm~0.2mm (depends on material)
Power Supply	AC100V-240V 50Hz/60Hz	AC100V-240V 50Hz/60Hz	AC100V-240V 50Hz/60Hz	AC100V-240V 50Hz/60Hz
Air Power Request	0.2Mpa~0.6Mpa	0.2Mpa~0.6Mpa	0.2Mpa~0.6Mpa	0.2Mpa~0.6Mpa
Humidity	0~90%(Non-condensing)	0~90%(Non-condensing)	0~90%(Non-condensing)	0~90%(Non-condensing)
Temperature	From 0 to 40 Centigrade Degree	From 0 to 40 Centigrade Degree	From 0 to 40 Centigrade Degree	From 0 to 40 Centigrade Degree
Making content	English characters, number, all kinds of graphic, logo, dot matrix 2D codes, Barcode, Serial Number, circle letter and etc.
Software Compatible	Windows 98/XP/7 32 bit (KT-PD series need to connect to PC)
Integrated controller	The controller integrates software, keyboard, screen, no need computer anymore.

FAQ
Q: I am not sure if this machine can work on my product or not, how do I choose?
A: We will help you choose the suitable machine and give you solution, you can tell us the material of product, shape of
workpiece, marking position, marking content size, and marking depth requirement.

Q: Is this machine easy to operate, what should I do if I don't know how to use it?
A: We send installation and operation manual with machine, operation video, online training via Skype, Wechat, Whatsapp,
phone conversation etc. are available. Staff training in our factory is free of charge, if needed, we can send our engineer
overseas for training.

Q: If machine is out of order, what shall I do?
A: We provide one year warranty for machine, two years warranty for laser generator.
If find problem, please contact us, we will reply you within 24 hours and help you find out problem then figure it out. We provide
lifelong maintenance and replacement parts.

Q: What are the interface language options of marking software?
A: The marking software interface language options are English, Korean, Japanese, Chinese simplified, Chinese traditional.

Q: Will the package be strong enough because it might be multi-way transportation.
A: We have three layers, for the inner layer, the machine is wrapped with waterproof shrink film. The outside layer is strong
wooden case free of fumigation. Between these two layers, we will fill EPE foam, bubble bag, carboard and so on to avoid t
he machine damage by shaking.

Q: What is the delivery time?
A: Commonly the lead time is 5 working days after receiving payment. For customized machines and large quantity order,
the lead time will be longer.
Q: What is the payment terms?
A: We accept payment by TT, LC, Paypal, Western Union, Mastercard, VISA, Cash, ****** trade assurance etc.
