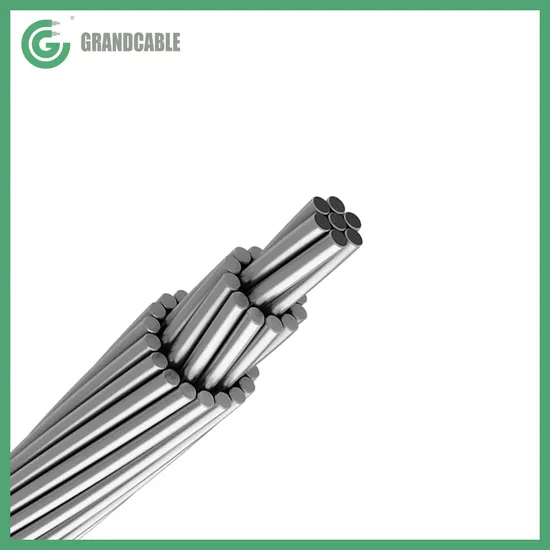

ACSR Tern Greased Conductor cable aluminum conductor for 400kV Transmission Line

Product Description

ACSR Tern Greased Conductor cable aluminum conductor for 400kV Transmission Line
Description:
The use of Aluminium as a material for electrical conductors has greatly developed mainly due to its electrical properties. However, Aluminium conductors for most of transmission lines which spans are quite long, it is necessary an additional mechanical support. Commonly it is used galvanized steel wires for cores of ACSR.
Application:
Widely used as bare cable for overhead transmission lines and also as primary and secondary bare cable for distribution lines.
Construction:
ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.
ACSR is according to electrical and mechanical strength requirements of transmission or distribution lines, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.
Characteristics:
· Construction characteristics

Code Name	Tern
Type of Conductor	Circular Stranded
Conductor material	Aluminum / Steel Core

· Dimension characteristics

Conductor cross-section	795 Kcmil
Aluminium cross-section	403.77 mm²
Conductor cross-section	431.60 mm²
Number of aluminium wires	45
Diameter of aluminium wires	3.38 mm
Number of steel wires	7
Diameter of steel wires	2.25 mm
Diameter of steel core	6.75 mm
Conductor diameter	27.03 mm
Grease	Optional
Max. DC resistance of the conductor at 20°C	0.0718 Ohm/km
Approximate weight without grease	1336.1 kg/km

Packaging Photos:

With professional rich experience in overseas business, Grand Cable is able to supply cables up to 500kV for global projects. Grand Cable covers an area of 130,000 square meters, owns total assets of 100 million CNY and more than 500 staff members.
Grand Cable is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises, the Private Technology Enterprises, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and ISO 45001 Occupational Health and Safety Management System Certificate. With more than 300 sets of first-class domestic and imported manufacture and test equipment,
Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables (LV/HV/MV/EHV), Special Cables.
Today, Grand Cable is a fast growing global supplier, our products can be manufactured in compliance with different standards, including International Electrical Standard (IEC), Australia and New Zealand Standard (AS/NZS), German Standard (VDE DIN), British Standard (BS), European Standard (EN/CENELEC HD), French Standard (NF C), Canadian Standard (CAN/CSA), American Standard (ICEA/ASTM/ANSI/UL), Russian Standard (GOST), Argentina Standard (IRAM), Spanish Standard (UNE), Indonesian Standard (SNI), Indian Standard (IS), Japanese Standard (JCS/JIS), Chilean Standard (NCH), South African Standard (SANS/PIESA), etc.
Grand Cable has been identified as High-Tech products, Brand-Name products and Well-Known Trademark. Our products cover electric power, petrifaction, railway, construction, metallurgical and appliance industries, widely used in construction of global urban & rural power grid, for electricity generation, transmission and distribution projects.
Grand Cable always adheres to the service concept "Lighting Your World Up!", committing to excellence and professionalism for global customers
Q: How long does it take get my inquiry replied? A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your product?
A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.
Fore More Information, Please do feel free to contact us!
