(WLD15000) Car Spray Painting Machine Auto Bus Paint Booth Truck Spray Booth Spraying Booth Painting Booth Car Spray Painting Booth Car Paint Booth Spray Booth

Product Description

Product Description
This car spray booth gives stable working performance. It can provide the car paint spraying process with the desirable workspace. Our product is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand.
1. Perfect performance
2. Professional manufacturer of car paint booth.
3. 1 year warranty, life-long maintenance for our booth
4. Professional sales & after-sales team.
5. Timely delivery. Auto Garage Painting Equipment Truck Spray Booth Truck Paint Booth Painting Cabin Room Paint Baking Oven Truck Spray Paint Booth For Painting Trucks WLD15000
12m, 15m, 18m, 20m, 22m...any sizes can be customized;
3D lift in the big spray booth is optional.
Air exhaust from two sides of spray room or pit is optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.
Truck Spray Booth WLD15000 Configuration

External Size	15150 x 8850 x 5600mm
Internal Size	15000 x 5000 x 4800mm
Wallboard	Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Door	4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.
Air Intake System (3 sets)	Each set consists of 2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.
Air Exhaust System (3 sets)	Each set consists of 1x5.5kw exhaust fan. Total 3 units of 7.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
Air Pipe	Made of Glavanized steel sheet. Consisted of 4 pieces of straight pipe 750*750*1000,and 1 piece of below .
Heating System (3 set)	Each set consists of 1 units Italy Riello G20 diesel burner 200000Kcal/h. Total 3 units of burners,600000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency
Lighting System	Ceiling light has 18 units x 4pcs of 15w lamps. Side light has 22 units x 4pcs of 15w lamps. Total 136 pcs of 15w lamps. 900 Lux
Air Purification	Dual filtering structure. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. Multilayer glass fiber. The air cleanliness in the working environment can reaches 98%.
Control Box	Microcomputer control panel. CHINT electronic components.Equip with overheat , overload & shortcircuit protected, saft and reliable. easy to control and maintain.

Optional: 3D lift:3D car lift is supplementary equipment that used in automobiles, trains and other large or medium-sized work piece. It has high rigidity, stability, rational layout, easy operation, operation of safe and reliable etc. It is the most ideal lifting equipment for reduce the labor intensity and improve work efficiency.
2. StructureThe 3D lift consists of vertical support post, working table, upper rail, down rail, convey system and anti-explosion control box . It can move left and right, upper and down and towards the front also.

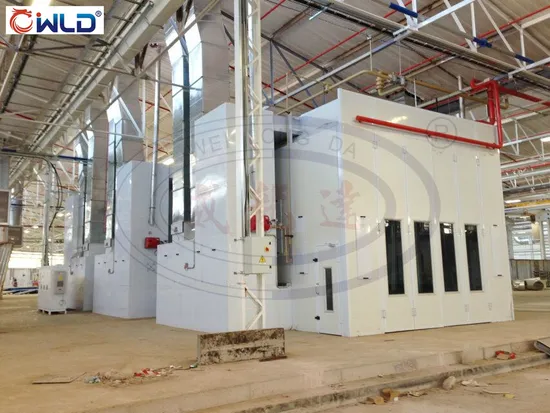

Customer Real Cases
Company Profile
Exhibitions
Certifications
Packaging & Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods by thicker bubble paper, some of them are packed by carton.
Q2. What is your terms of payment?
A: By T/T, 30% as deposit for production, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: Normally our quotation is under FOB Guangzhou, but we also accept EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving full payment. If your voltage is different from 380V/3PH/50Hz, the delivery time will be around 20 days for custom-made motors or electric components.
Q5. Can you produce according to the technical drawings?
A: Yes, we can produce by your technical drawings or requirements. We can make drawings for you.
Q6: How do you make our business long-term and good relationship?
A1. We keep good quality and competitive price to ensure our customers benefit ;
A2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Q7: Why choose WeiLongDa?
A1. Wallboard - All WLD spray booth wall panels are anti-fire EPS,foam density is 14kg/m²;
A2. Front door - with aluminum view window, made of 50mm EPS, 0.8mm galvanized steel with plastic spray. Front door is like a face, beautiful, strong, practical, leakproof, anti-rusting & long-lasting, it means your workshop will attract more business and you will spend less time and money on spray booth maintenance;
A3. Steel structure - 4000kg vehicle can safely get in and out of the booth without worried, no noise, vibration is minimized, no air leakage, dust free, clean and efficient, we use thick galvanized steel pipes to make our spray booth cabinet, so our cabinet is anti-rusting;
A4. Heat exchanger - 2 layers radia pipes structure with 2 wings welded by experienced skillful welder, it is high efficiency & safe;
A5. Motor fan - introduced from Simens technology with large air flow at low noise, high quality bearing, full cooper coils, rock wool sound proff cover;
A6. Components finishing - since Weilongda factory has its own powder coating facility, all components seen were with powder coated treatment. Strong anti-rusting finishing, not just good looking but also make a durable spray booth.
A7. Advantages of Weilongda control panel - 1) dust free 2) user can intuitively see the booth actual operation status from the panel 3) spray temperature and baking temperature were set in internal memory, no need to reset temperature when change the mode 4) digital pressure display with over pressure alarm 5) over heat fire alarm system 6) we offer 1 year warranty, life-long maintenance for our booth;
A8. Small details - 1) hinge type ceiling filter frame, one person can handle changing filter 2) flter is self sealing no need screw to fix 3) fan filter is easy to access with small door and handle 4) front door locking pin with position locking 5) infrared lamp with rock wool isolation 6) infrared lamp install with isolation distance 7) infrared lamp with door open security sensor switch 8) infrared lamp with wire entrance prastic screw.
