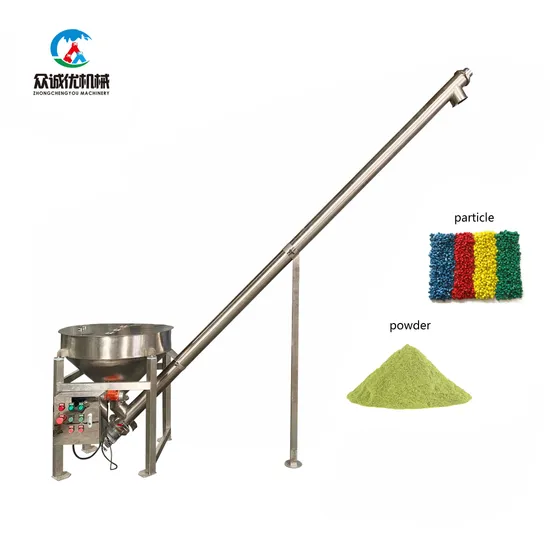

Stainless Steel Auger Screw Powder Feeder Auger Conveyor Machine
| US$850.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LS-133
Structure
Inclining Conveyor
Material
Stainless Steel
Material Feature
Heat Resistant
Application
Chemical Industry, Grain Transport
Condition
New
Advantage
Simple Operation
Motor
Chinese Famous Brand
Feature
Simple Operation
Size
Customised Size
Voltage
380V,/415V/as Client′s Demand
Weight (Kg)
100kg
Transport Package
Wooden Case
Trademark
Zhongchengyou
Origin
China
Production Capacity
100 Sets Per Month
Product Description
Product Description
The screw conveyor is a kind of machinery that uses the motor to drive the screw to rotate and push the material to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically, and can be divided into U-shaped screw conveyor and tubular screw conveyor in appearance.
Our Advantages
Product Parameters
| Screw conveyor | LS-100 | LS-160 | LS-200 | LS-250 | LS-315 | LS-400 |
| Spiral diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 |
| Pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 |
| Speed(r/min) | 100 | 120 | 90 | 90 | 75 | 75 |
| Conveying capacity Q Φ=0.33(m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 |
| Power Pd 1=10m(kw) | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 |
| Power Pd 1=30m(kw) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 |
| Speed | 120 | 90 | 75 | 75 | 60 | 60 |
| Conveying capacity Q Φ=0.33(m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 |
| Power Pd 1=10m(kw) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 |
| Power Pd 1=30m(kw) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 |
Packaging & Shipping
Certifications
FAQ
Please tell me your production needs , we will provide price to you soon.
1.What material will you convey for?
2.What is the size of your material ?
3.Bulk Density: _____kg/m3 or ____g/cm3 . If convinient,please attach your raw material photo.
4.Level or inclined? Discharge outlet height?
5.What's your output capacity per hour?
6.Do you need add a hopper, if it is, please tell me the hopper volume you want ? _____L
7.Stainless steel 304/316 or carbon steel ?
