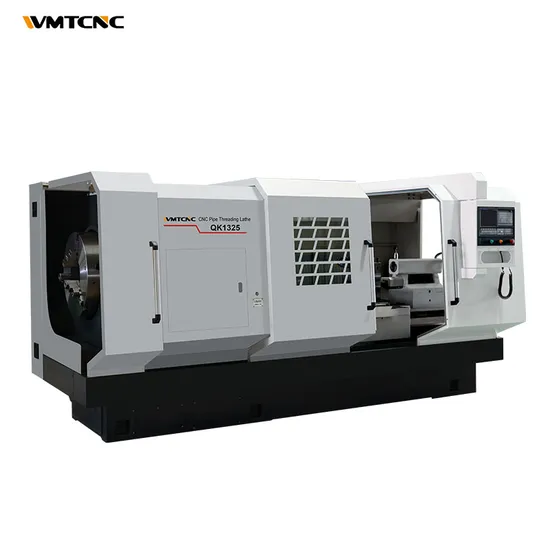

oil pipe thread cnc machine QK1325 cnc lathe big bore metal pipe threading machine

Product Description

Oil pipe thread cnc machine QK1325 cnc lathe big bore metal pipe threading machine
Product Description
Main Features:
1 Large spindle aperture with high passability and stable workpiece clamping with double chucks.
2 High quality and high strength cast iron casting overall bed with good rigidity and high precision.
3 The surface of the guide rail is quenched by super audio treatment, with great hardness and long service life.
4 The planker adopts the plasticizing process of the guide surface, which is wear-resistant and highly accurate.
Specification

Specification		QK1325
Capacity
Chuck size		4 jaw chuck (630)
Max. swing dia over bed		800mm
Max. swing dia over slide		535mm
Max. length of workpiece		1500mm
Width of bed		550mm
Spindle
Spindle bore		255mm
Spindle speed range		(L):15-100r/min
		(H):100-350r/min
Power of spindle motor		15kw
Mode of spindle speed		Variable speed in 2 steps
Axis
Max.travers of X/Z axis		X:420mm
		Z:1250mm
X/Z rapid traverse		4000/6000mm/min
X-axis motor	Speed	1500r/min
	Torgue	10N.m
	Power	2.8kw
Z-axis motor	Speed	1500r/min
	Torgue	15N.m
	Power	2.4kw
Turret
Electric tool-post	Model	HAK21240
	No.of tool stations	4 position
	Dimension	240×240mm
	Tool change time	2.6s
Tailstock
Tailstock quill	Diameter	100mm
	Travel	250mm
	Taper	MT6
Positioning accuracy (National standard)
Positioning accuracy		0.02mm
Repositioning accuracy		0.01mm
Machine Dimensions
Overall dimensions(LxWxH)		3800x1900x1900mm
Machine weight		6.2t

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
