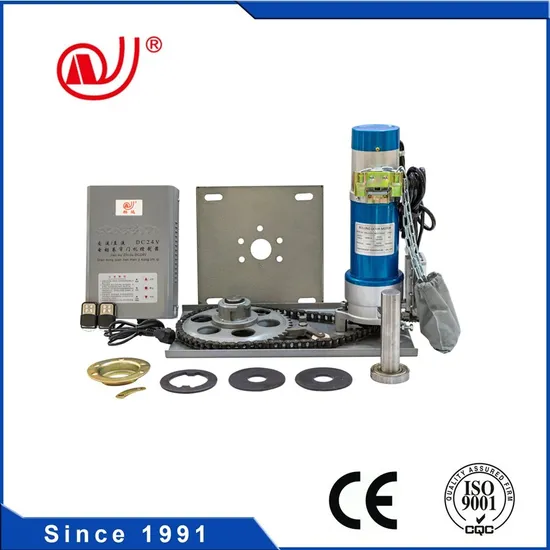

DC300kg Electric Garden Garage Roll Door Open Motor Motorized Cabinet Shutter Lift Roller

Product Description

Product Description Product Description
Application Area:
Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.
Working Environment & Conditions
1) Working Area: Indoor or similar places
2) Environment Temperature:-20ºC~50ºC
3) Relative Humid it: ≤90%
4) Voltage of Power: Fixed voltage× (1 ±10%)V
5) Frequency of Power:50Hz±2Hz
6) No strong electromagnetic interference source, explosive medium, corroding metal medium around.
7) Short working hour system, continuous operation should not over 6 minutes.
Feature
1) Shell: Aluminium alloy , solid and light but durable and easy to install.
2) Low noise: low energy consumption, small vibration.
3) Limit System: Correct control , easy operation , and big control range.
4) Anti-dropping device: Preventing accidental injury and ensure safety.
5) Transmitters: It outfits with remote control.
Technical Parameter Technical Parameter

Model No.	Max lifting weight(kg)	Max lifting height(m)	Rated Input Power(W)	Output Torque(N.m)	Big reel sprocket Rotation(r/min)	Chain No.
220V/230V 50HZ/60HZ
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
380V/415V 50HZ/60HZ
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A

Details
1) 100% copper wiring makes Motors with larger capacity, stable current and durable character.
2) 4 Micro switches in limit utensil for correct control, easy operation and big control range.
3) An anti-dropping device in bracket board to prevent accidental injury and ensure safety.
4) Motors can be customized based on your requirements.
Packaging & Delivery Packing & Delivery
Packing: One set in two cartons, plastic bag inside, carton outside.
( The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.)
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.
Delivery time: We will delivery the goods in 10-45 days after we receiving your deposit, which according to your exact quantity and requirements~
Company Information Company Information
Zhangzhou JinAn Electric&Machine Co., Ltd. is a manufacturer who has been specializing in developing and producing all kinds of rolling door motors since 1991. Through the introduction of advanced production technology and equipment and a strong quality oriented workforce, we have gained CE and ISO9001 quality certification. With strict quality control under 100% full inspection to ensure all products in good quality on you hand. Meanwhile, we have professional engineer team to offer technical support for our customers. With the features of elegant design, stable quality, strong power, quiet running, easy installation and long service life, our motors are popular with friends from Middle East, Asia, South America, etc.We consistently insist our company motto "Pursuing quality, permanent and continuous service" to satisfy our customers from different countries. With the positive attitude of keeping-improving and the spirit of striving, exploring and being responsible, we sincerely hope to open long-term, mutual reliance businesses with friends from all over the world!
Our Equipment
Certifications Certificates
Exhibition Exhibition
More Choice For You More Choice For You
We have AC Motor 300kg, 500kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg and DC Motor 300kg, 500kg, 600kg for your option.
FAQ FAQ
Are you a manufacturer?
-Yes,we are a professional manufacturer of rolling door motor in Zhangzhou,we have our own factory.
How about the delivery time?
-Normally, if the goods are in stock it is 7-10 days; and it will be 15-35 days based on customer's quantity & request, if the goods are not in stock.
Can you do OEM for me?
-Yes,OEM is acceptable,please contact us with your requirements,we will provide you a reasonable price and samples as soon as possible.
What's the material of your Motor Winding?
-The main material is 100% Copper Wire, and Aluminum Wire is also for option for AC motors.
May I know the minimum Order Quantity ?
- Any quantity is welcome. Sample order for testing quality is available.
what's your terms of payment?
-We accept Company Bank transfer. For samples, it should be 100% T/T in advance. For orders, 30% T/T in advance, and 70% balance before delivery.
How about your quality?
-We have professional engineers for technical supports, stable materials suppliers and strict quality control. Our workers with rich experience, all motors must be testing one by one before packaging to ensure good quality.
If you need more information, please feel free to leave your message or contact us directly.
