High-Speed Rechargeable Lithium Battery Powered Torque Wrench Gun Power Tools Impact Electric Cordless Torque Wrench with Digital Display
| US$2,600.00-8,860.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TYDBEW-Series
Impact Rate
.
Torque
500-8000n.M
Brand
Tyd
Power Supply Type
Rechargeable - Lithium
Power Supply Voltage
220V/110V
Battery Voltage
18V
Unloaded Speed
13000rpm
Power Source
Electricity
Product Name
Battery Powered Digital Torque Wrench
Product Type
Cordless Torque Wrench
Model Number
Tydbew-Series
Battery
18V/5ah
Torque Range
Battery-Powered
Square Drive
3/4′′, 1′′, 1-1/2′′
Max. Speed
1.4
Motor Type
Brushless Motor
Grade
Industrial
Customized Support
OEM, ODM
Brand Name
Tyd
Max. Torque
8000n.M
MOQ
1PCS
Certificate
CE
Warranty
1 Year
Transport Package
Plastic Box Packaging
Specification
290*72*272mm
Trademark
TYD
Origin
Wuhan, China
HS Code
84678990
Production Capacity
1100set/Month
Product Description
High-Speed Rechargeable Lithium Battery Powered Torque Wrench Industrial Electric Cordless Torque Wrench with Digital DisplayModel: TYDBEW-SeriesProducts Description

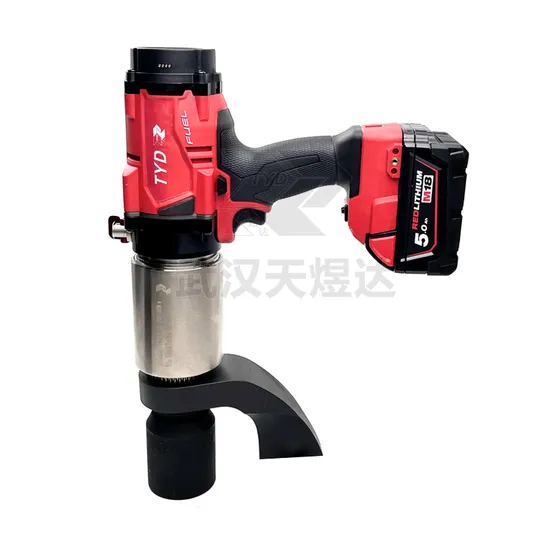

TYDBEW-S series charging battery electric torque wrench is a hand-held rotary electric tool with torque digital input and display, with torque compensation function, which can accurately set the torque, used to complete the tightening/removal of nuts or bolts.
The driving part adopts High-efficiency brushless DC motor, high-speed intelligent chip control, and the mechanical part adopts planetary gear reduction mechanism.
Main technical parameters of the motor:Use voltage----------------------18V
Motor no-load speed----------13000rpm
Battery capacity----------------5Ah (standard), 9Ah (optional) Product Parameters
| Model | Min Torque(N.m) | Max Torque(N.m) | Drive S | Diameter D(mm) | Length E | Length L | Width K | Width A | Width B | Weight | Max speed |
| (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) | rpm | |||||
| TYDBEW-007S | 10 | 70 | 1/2" | 52 | 126 | 220 | 195 | 48 | 62 | 1.93 | 110 |
| TYDBEW-02S | 35 | 200 | 1/2" | 55 | 126 | 237 | 195 | 48 | 62 | 2 | 60 |
| TYDBEW-03S | 60 | 300 | 1/2" | 60 | 126 | 255 | 195 | 48 | 62 | 2.1 | 45 |
| TYDBEW-05S | 100 | 500 | 3/4" | 63 | 180 | 297 | 260 | 110 | 80 | 4.3 | 15 |
| TYDBEW-10S | 100 | 1000 | 3/4" | 65 | 180 | 320 | 260 | 110 | 80 | 5.1 | 9 |
| TYDBEW-16S | 300 | 1600 | 1" | 69 | 180 | 341 | 260 | 110 | 80 | 5.9 | 5 |
| TYDBEW-20S | 400 | 2000 | 1" | 69 | 180 | 341 | 260 | 110 | 80 | 5.9 | 4.5 |
| TYDBEW-30S | 500 | 3000 | 1" | 82 | 180 | 358 | 260 | 110 | 80 | 6.8 | 3 |
| TYDBEW-40S | 700 | 4000 | 1-1/2" | 82 | 180 | 358 | 260 | 110 | 80 | 6.8 | 2.4 |
| TYDBEW-60S | 1000 | 6000 | 1-1/2" | 92 | 180 | 412 | 260 | 110 | 80 | 10.9 | 1.4 |
| TYDBEW-80S | 2000 | 8000 | 1-1/2" | 103 | 180 | 435 | 260 | 110 | 80 | 12.7 | 1.1 |
1. The latest 18V/5Ah lithium battery technology, with two lithium batteries and a charger2. Small size, lightweight, high torque accuracy, 5% accuracy and 3% repeatability.3. Programmable preset torque value.4. It has the functions of torque selection mode, bolt grade mode, and torque compensation mode, which is convenient and quick to use.Why Choose Us
