China Mini Excavator 1.7t Small Digger CT16-9b Excavator with Rubber Track
| US$11,600.00-14,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT16-9B
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.04m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Ground Pressure
28 Kpa
Power Output
10kw/2200rpm
Engine
Yanmar 3tnv70
Travel System
Eaton
Hydraulic System
NACHI, Japan
Main Control Valves
Hydro Control, Italy
Swing System
Eaton
Bucket Width
450 mm
Max. Digging Height
3327mm
Max. Dumping Height
2361mm
Max. Digging Depth
2110mm
Max. Digging Distance
3947mm
Transport Package
Load 4 Units in One 20gp Container
Specification
1.7 ton
Trademark
Carter
Origin
China
HS Code
8429521200
Production Capacity
1200set/Year
Product Description
Name:Carter CT16-9B excavator/mini digger(10KW)Advantage Points:
1 Have passed CE certificate.
2 Originally imported Yammar engine, low noise, low fuel consumption, big torque.
3 Main pump:CASAPPA,Valve:Hydro Control, Swing motor:Eaton,Travel motor:Eaton,with reliable quality.
4 Power system and hydraulic system cooperate well to improve 10% dig power.
5 Optional extension track to improve stability.
6 Boom deflexion meet narrow work condition.
7 Optional hydraulic quick hitch, hammer, ripper and drill.

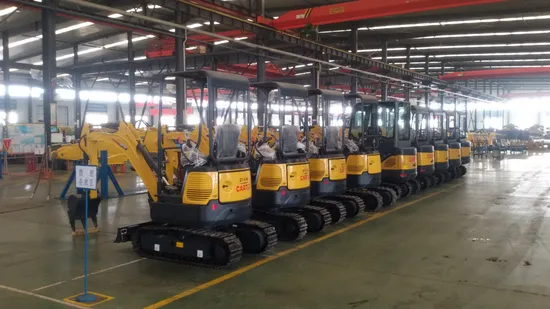

Products Pictures:
Specification:
| Engine | Travel System | ||||||||||
| Model | Yanmar 3TNV70 | Travel motors | Eaton | ||||||||
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×3 | ||||||||
| Carrier roller quantities | 2×1 | ||||||||||
| No. of cylinder | 3 | Travel shoes | No | ||||||||
| Bore and stroke | 70x74(mm) | Travel speed | 2.1/4.2(km/h) | ||||||||
| Displacement | 0.854L | Drawbar pulling force | 11.7kN | ||||||||
| Power output | 10kw/2200rpm | Gradeability | 58%(300) | ||||||||
| Max. torque | 50N.m/2000rpm | Track Shoes Thickness | 5 mm | ||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||
| Pump | Nachi, Japan | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat | ||||||||
| Type | Axial-piston pump+gear pump | ||||||||||
| Max. discharge flow | 49.5 (L/min) | ||||||||||
| Max. discharge pressure | |||||||||||
| Boom, arm and bucket | 20.6MPa | Voltage | 12V | ||||||||
| Travel circuit | 12 MPa | Batteries | 1X12V | ||||||||
| Swing circuit | 9 MPa | Battery capacity | 60Ah | ||||||||
| Control circuit | 3 MPa | Boom, Arm & Bucket | |||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ60xΦ35xS440-L770 | ||||||||
| Main control valves | Hydro Control, Italy | Arm cylinder | Φ60xΦ35xS330-L600 | ||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ30xS300-L560 | ||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||
| Swing motor | Eaton | Fuel tank | 22L | ||||||||
| Swing motor type | Axial-piston motor | Cooling system | 8L | ||||||||
| Brake | No | Engine oil | 4.4L | ||||||||
| Parking brake | No | Hydraulic oil tank | 17.5L Tank Oil Level | ||||||||
| Swing speed | 8.5 r/min | 21L Hydraulic System | |||||||||
| Bucket | |||||||||||
| Type | Backhoe bucket | ||||||||||
| Bucket capacity | 0.04m3 (SAE) | ||||||||||
| Bucket Capacity scope | 0.028-0.095m3 | ||||||||||
| Number of bucket teeth | 4 | ||||||||||
| Bucket width | 450 mm | ||||||||||
| Working ranges | |||||||||||
| Boom length | 1830m | ||||||||||
| A | Max. digging height | 3327mm | |||||||||
| B | Max. dumping height | 2361mm | |||||||||
| C | Max. digging depth | 2110mm | |||||||||
| D | Max. vertical digging depth | 1600mm | |||||||||
| E | Max. digging distance | 3947mm | |||||||||
| F | Max. digging radius at ground level | 3889mm | |||||||||
| G | Min swing radius of work equipment | 1625mm | |||||||||
| Digging Force (ISO6015) | |||||||||||
| Arm length | 950mm | ||||||||||
| A | Bucket digging force | 13.5 KN | |||||||||
| B | Arm digging force | 8.6 KN | |||||||||
| Overall Dimensions | |||||||||||
| A | Overall length | 3707mm | I | Track grounding length | 1210mm | ||||||
| B | Ground contact length(Transportation) | 2611mm | J | Track length | 1588mm | ||||||
| C | Overall height(to top of boom) | 1185mm | K | Track gauge(extension 1090mm) | 760mm | ||||||
| D | Overall width | 1000mm | L | Track width(extension 1320mm) | 990mm | ||||||
| E | Overall height(to top of cab) | 2424mm | M | Track Shoe width | 230mm | ||||||
| F | Counterweight ground clearance | 484mm | O | Counterweight height | 794mm | ||||||
| G | Min. Ground clearance | 175mm | P | Revolving frame width | 1000mm | ||||||
| H | Tail swing radius | 665mm | Q | Distance from swing center to tail | 665mm | ||||||
| Operating Weight and Ground Pressure | |||||||||||
| Operating weight includes basic machine | |||||||||||
| Operating weight | 1700kg (with canopy) | ||||||||||
| Ground pressure | 28 KPa | ||||||||||
