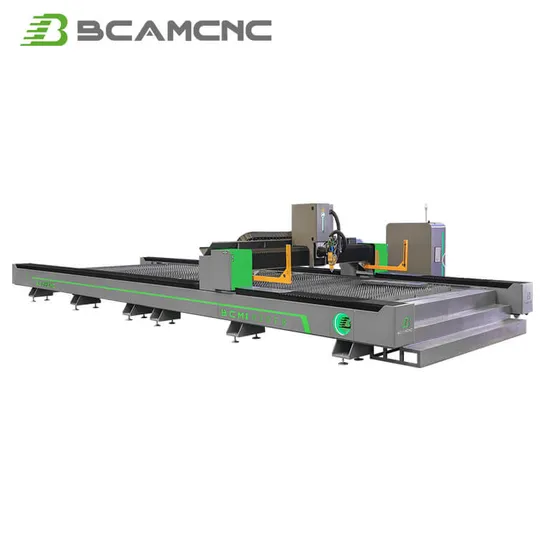

45 Degree Beveled 5 Axis Bevel Laser Cutting Machine for Sheet Metal

Product Description

Product Description
ADVANTAGES
1.Bevel cutting, ±45° bevel, perfectly adapts to the next step of processing, no additional processing or subsequent adjustment is required, and the efficiency is increased by 75% compared with traditional processes.
2.Leading the industry's top intelligent bus system, stable and reliable, simple debugging, safe production, rich functions, excellent performance, greatly improving bevel cutting efficiency.
3.Use unique design to ensure that different angles and different nozzles can output the same standard bevel cutting effect, without the need to readjust after each configuration change.
4.Bevel perforation, set angle for bevel punching, improve cutting accuracy and subsequent processing efficiency.
5.The plane verticality compensation can bring high-precision bevel cutting effect even when the plate is not level.
SPECIFICATION

Product Name	Fiber Laser Cutting Machine BCM-FB
Working Area	3015/4015/4020/6015/6020/6025/8020/8025
Laser Power	1500w/2000w/3000w/4000w/6000w/8000w/10000w/12000W/24000W/50000W/80000W
Max Cutting Thickness	0-100mm(Depends on the power of the machine & cutting material)
Max Cutting Speed	120m/min
Bevel	±45°
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Laser Head	Raytools
Laser Source	Max/Raycus/IPG
Power System	Taiwan Delta motor and drivers+Japan Shimpo reducer
Location System	Red dot indicator
Delivery Time	7 - 10 working days after payment
Application Material	stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy,copper, brass, iron .

Machine Details
MACHINE DETAILS
FIBER LEASE HEAD
±45° bevel cutting, carbon steel groove limit cutting 60mm, higher cutting efficiency and fewer processes.
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
HIGH STABILITY BED
High-strength bed, maintaining minimal vibration and high precision.
THE MOTOR AND REDUCER
Machine adopt Taiwan Delta servo motor and Japan Shimpo reducer.
TAIWAN TBI LINEAR GUIDE RAIL
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
LONG LIFE LASER SOURCE
Fiber laser generator with great and stable performance to have lifespanover 100,000 hours.
CUTTING PARAMETERS
Samples Display
SAMPLES DISPLAY
Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: I don't know which one is suitable for me ?
A: Just tell me this information and our professional sales colleagues will recommend the right machine for you
1. What type of metal do you want to cut? (e.g., Sheet, tube, or both)2. What kinds of metal materials are you interested in? (e.g., Carbon steel, Stainless steel, Aluminium)3. What is the maximum cutting thickness and size? (e.g., Thickness: ___, Size: ___)
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed training videos and user manuals with the device. 95% of customers can learn by themselves.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.
