Hot Feed Rubber Extruder Machine with CE. ISO

Product Description

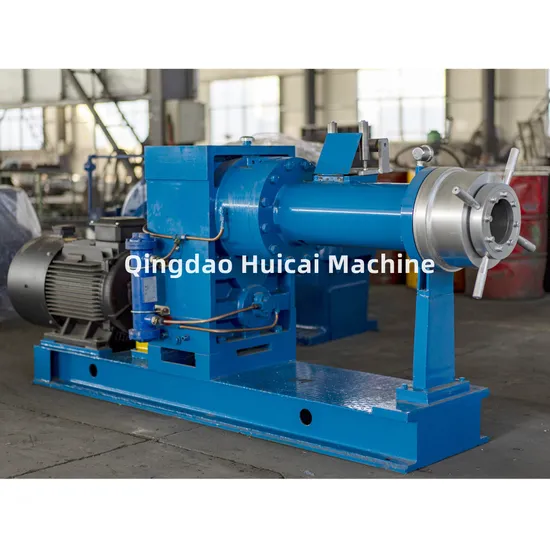

Hot Feeding Rubber Extruder Machine (XJ-65,XJ-115,XJ-120-150,XJ-200)
Product Description
The Extruder is consist of screw,machine barrel,headpiece,fixing patter device,pulling device ,cutting device,batching device and transmission device and control system, the headpiece is extrusion mould.
Rubber extruder machinery is used to extrude tread, inner tube, flap and semi-finished products of the sectional shape. We can produce hot feed Rubber extruder and cold feed Rubber extruder (pin barrel cold feed extruder) etc.
Applications
The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.to ensure the safety of the roller of the rolling mill. In the process of rolling,the threshing of the screw rod promotes the uniform plasticization of the rubber,and cool perservation by water can be adopted for stablizing the process.
Main Features
♦Screw made of special steel is with nitrogen treatment,durable.
♦Jacketed type barrel can be cooled for cooling the rubbers effectively.
♦Double head strainer to be quickly and easily exchanged.
♦Smoothly running and high output.
♦Equipped with die-head auto opening system when electric power is cut off.
Technical parameters

Type	XJ-65	XJ-115b	XJ-120	XJ-150	XJ-200	XJ-250
Forms of screw and screw thread	Double-head equal-depth convergent type	Double-head convergent type	Double-head convergent type	Double-head unequal-depth	Double-head convergent type	Double-head convergent type
Screw diameter(mm)	65	115	120	150	200	250
Length-diameter ratio of screw(L/D)	4	4.8	4.6	4.4	4.35	4.5
Compression ratio		1.3		1.34
Rotary speed of screw	5.2~52	5.4~54	5.6~55.6	20~26	22.4~67.2	19.7~59.1
Motor power(KW)	Electromagnetic speed 7.5KW	Electromagnetic speed 22KW	Electromagnetic speed 22KW	FrequencyControl 55kw/motor Commutator18.3-55kw	FrequencyControl 55kw/motor Commutator25-75kw	Commutator 33.3-100
Production capacity(kg/h)	50~80	100~420	100~450	700~1200	1500~2200	2000~3200
Steam pressure(Mpa)	0.2-0.3	0.4-0.6	0.2-0.4	0.6	0.6-0.8	0.6-0.8
Coolingwaterpressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.3	0.2-0.3	0.2-0.3
Size(length×width×height)mm	1750×550×1100	2427×750×1330	2427×750×1330	3411×814×1470	4564×1800×1750	4950×1150×1483

About us--
Qingdao HUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;
6.our machine are welcome by the world,popular in lots of markets
Notice:
we can accept FOB,CIF,CFR,EXW,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
