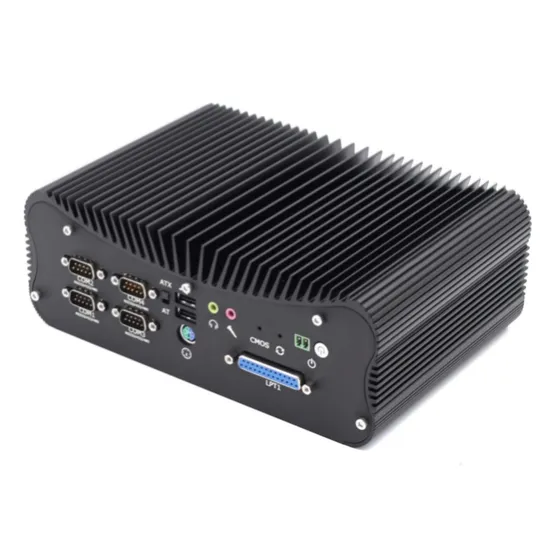

Hystou Industrial Fanless Intel Corei5 7th Gen Desktop Computer Gigabit Ethernet Dual Band Wi-Fi Bluetooth 4.2 4K HD Industrial Mini PC

Product Description

Product Description Powerful Capacity + Storage Expansion This tiny computer is equipped with high-speed 64GB DDR4. You can also expand the M.2_SATA_2280 SSD x1 upgrade storage up to 2TB (not included). You can also add a 2.5" HDD (not included) for expanded memory, a wonderful secure database, and even more storage. Handles with ease Simultaneous multitasking, entertainment, audio and video, office, diverse modern computer. Dual DDR4 R AM 64GB DDR4 has significant advantages over DDR3. Firstly, DDR4 memory offers higher data transmission bandwidth, supporting faster data transfer speeds at the same frequency, making it especially suitable for tasks that demand high memory bandwidth, such as large file processing, multitasking, and graphics applications. Secondly, the low voltage characteristics of DDR4 memory reduce power consumption and heat generation, contributing to improved energy efficiency, extended battery life, and enhanced system stability. Additionally, the DDR4 standard supports larger memory module capacities, allowing for the installation of more memory in computers, and provides more error correction code (ECC) options to enhance system reliability and stability. Dual Display Output & Support 4K Display 7-core 1800 MHz AMD Radeon graphics card provides powerful graphics processing capability. Dual display 4K @ 60Hz output via HD-MIlets you multitask with ease. You can fully browse the Internet, use Microsoft Office, Adobe applications, watch 4K videos, and,play games. They extend the versatile desktop to another dimension. Mini PC WIFI + Multiple Connections This small computer supports 2.4G + 5.0G dual-band WiFi, One embedded SIM card slot onboard for 3G/4G Wi-Fi.and this tiny computer supports Bluet-ooth 4.2 to connect with your multimedia devices, mouse, acoustic or earphones. The mini computer supports connecting multiple devices and can be used with servers, monitoring equipment, office equipment, monitors, projectors, TVs, etc. Optimize Performance and Reliability with Built-in Fans Mini PCs with built-in fans provide exceptional cooling performance, effectively lowering the internal computer temperature to prevent overheating and maintain hardware performance stability. By cooling hardware components, these fans extend the lifespan of computer hardware and reduce the risk of hardware failures caused by high
temperatures. They allow for overclocking and high-load applications, significantly enhancing computer performance. Moreover, our fans are designed to operate quietly, creating a more comfortable working and gaming environment. Their efficient design minimizes energy consumption, contributing to cost savings on electricity. Details Images Rich interface mini computer features high-precision integrated body, 20+ All-powerful ports, well-organized interfaces for office, entertainment, education, easy to connect multiple devices like servers, monitor, office equipment, displays, projectors, televisions, etc. 2*Intel Gigabit RJ45 LANs, 6*DB9 COM, 4*USB 3.0, 2*USB 2.0, PS/2, GPIO and LPT rich ports for different equipments.

Processor
CPU	Intel Core i5-7360U (4M Cache, 2 Cores 4 Threads, Base Frequency 2.30 GHz Turbo Frequency 3.60GHz)
TDP	15W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM 260pin
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	1*M.2 2280 M KEY PCIE3.0
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	1*mSATA slot
Graphics
Processor Graphics	Intel® UHD Graphics 620
HDMI	1*HDMI 4096*2304@30Hz(4K)
VGA	1*VGA 1920*1080@60Hz(1080P)
Power Specification
Power Adapter	DC 12V/5A
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	4*USB 3.0 port,2*USB 2.0 port
Audio	1*3.5mm MIC in & SPK out
Video	HDMI 4096*2304@30Hz + VGA 1920*1080@60Hz 2 Display Output
Lan Port	2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211/I219-V
Com Port	6*RS232 Com port/2*RS232 Com port + 4*RS422 Com port or 4*RS485 Com port(Com1~Com4)
Others
System	Support Windows 7/10, Linux
Case Material	Aluminium Alloy
Dimension	PC size 240*150*57mm Package size 320*260*80mm
Weight	Net 2.4kg; Gross 3.3 kg

Company Introduction Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price. Our company in Shenzhen Welcome to visit our factory! Workers are assembling mini pc. Product Usage Packing&Shipping Packing List: Normally we use the carton box, 5 or 10pcs per carton 1 x Mini PC 1 x Power adapter(correct power plug based on buyer's country) 1 x WiFi modlue with dual antennas(barebone not include WiFi) 1 x VESA bracket(some model not support) 1 x Sata power cable and data cable.(some model just support one Msata) 1 x Warranty card & user manual FAQ
