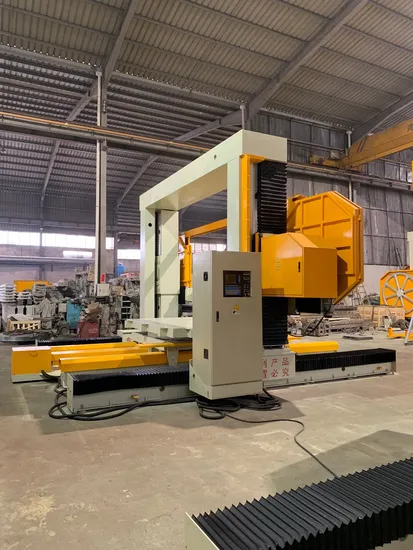

Gantry Movable Type Six Axis CNC Wire Saw Machine

Product Description

Features: The X-axis movement of the machine can be realized: it can adopts the precision rack and gear meshing transmission to drive the left and right columns to move synchronously, and the worktable move with a screw rod through the nut.
Function:The machine is mainly used for processing the profile of marble,sandstone and granite. it not only can process the arc slabs of different specifications, solid columns, hollow columns, large linear stone and English letter but also can process stone into polygon and the figure of Buddha,special-shaped square column and so on for special-3D Shapes stone.
Brief introduction of SHXJ-LTY Series CNC Wire Saw Machine:
1,the body of the machine can move,with trolley
2,The machine has steady structure, including top beam,two upright column,square box,hydraulic station tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit. tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-40m/s via inverter. the machine can cut different kind of stone material.
3, This machine is controlled by four axis linkage CNC system. Machine lifting Guide wheel rotating adopt step system.
4, Operator can write program and enter cutting parameter in the cnc control panel. If there are any complex graphics, can draw graphics by AutoCAD and save as DXF format. the cnc system can read the DXF files and automatically make the program when put the U disk to the USB interface of cnc system.
5, Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
6,The machine will stop automatically and display failures on the screen if wire broken.
7,the machine has a water spray system. if no water or not enough water,the machine will automatically stop.
Technical parameters:

Model Parameters	SHXJ-LTY-1500	SHXJ-LTY-1800	SHXJ-LTY-2200
FOB shenzhen port price	52000USD	54000USD	57000USD
Diameter of Wire	Φ8-Φ11	Φ8-Φ11	Φ8-Φ11
Length of Wire	18100mm	20100mm	22150mm
Speed of Wire	0-40m/s	0-40m/s	0-40m/s
Worktable Size	3000×2000mm	3000×2000mm	3000×2000mm
Worktable can rotate angle	360°(driven by common motor)	360°(driven by common motor)	360°(driven by common motor)
Worktable Load Capacity	50T	50T	50T
Range of Cutter Movement	1600mm	1900mm	2200mm
Max Cutting Size(L×W×H)	3500×2000×1500mm	3600×2000×1800mm	3600×2000×2100mm
Production Efficiency	1-3m²/h(marble) 0.5-2m²/h(granite)	1-3m²/h(marble) 0.5-2m²/h(granite)	1-3m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW	11KW	15KW
Water Consumption	3m³/hour	3m³/hour	3m³/hour
Overall Dimension	8600×6800×4300mm	9200×6800×5100mm	9800×6800×5800mm
Total Power	20.88KW	20.88KW	24.88KW
Voltage/Frequency(V/HZ)	380V/50HZ	380V/50HZ	380V/50HZ
Total Weight	16.4T	17.4T	18T

Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
