Product Description

Product description
Leading Large Space 3000kg Car Parking Lift for Underground Garage
Model: 21Q001
Syney cargo elevator creates new concept of goods moving, and ensures best loading capacity with wide open space. Safe and reliable, highstructure strength, endurable and smooth running, Syney freight lift, your best choice for supermarkets, shopping malls, logistic centers, exhibition centers, factories and warehouses, and be able to work under any strict working conditions.
Features
1. Multi beam door sensor
Multi infrared light covers the whole door height, to ensure the safey of passnegers and goods passing door area. When light beam is blocked, closing car door will rapidly open to make sure passengers and goods can safely get in or out.
2. Long life time usage
Main part of freight elevator car is designed by steel strucure, steel panel with bumper structure on cabin wall is used to protect cabin from goods impact, so as to increase the service life of the elevator cabin.
3. Anti-skid floor design
Syney freight elevator cabin adopts floating-poit rubber, which is skidfprood and durable.
4. VVVF door operator
Syney goods lift is euipped with VVVF technology drive system, with high reliability and low failure rate.
5. High-level performance
Installation is hightly standardized and flexible. With machine room or without machine room, components are designed and manufactured by systematic thinking, to create smooth and comforatble riding experience.

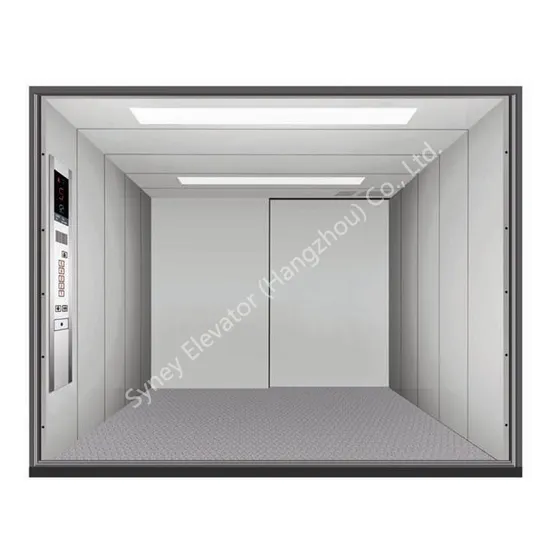

Freight elevator cabin design
Parameters: Freight Elevator With Machine Room

Syney-THJ-Freight Elevator with Machine room
One Cabin door:
Capacity	Speed	Cabin Size			Shaft Size			Min Floor H	Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	Min D	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)	(m)
1000	0.5	1500	1500	Side open: 1200*2100	2400	2100	4500	2500	25	2700
	0.63								30
1600	0.5	1700	2000	Side open: 1300*2100	2700	2600	4500	2500	25
	0.63								30
2000	0.5	2000	2000	Side open/ 4 panels center open: 1500*2100	3000	2700	4500	2500	25
	0.63								30
3000	0.5	2000	2800	Side open/ 4 panels center open: 1600*2100	3100	3400	4800	3000	25
	0.63								30
5000	0.25	2400	3700	4 panels center open: 1800*2100	3600	4300	4800	3000	16
	0.5								25

Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
Manufacturing, Packing and Delivery
Company Profile
Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manu­facture, marketing, installation and customer service. The company applies whole set of advanced equip­ments and specializes in design and manufacture of products including passenger elevator, pan­oramic elevator, bed elevator, cargo elevator, home elevator, car elevator, esca­lator, moving walks, etc. Syney sales network expands to over 50 countries in Europe, Asia, Africa and America.
Certificates
CE Certificate of Elevator with machine room and Elevator without machine room, and UCMP device
CE Certificate of energy-efficiency of lifts: Grade A
EAC Certificate Elevator with machine room and Elevator without machine room
Projects
