Jianke MA256S 25mm Double Spindle Swiss Type CNC Lathe Sliding Longitudinal CNC Lathe with Syntec System

Jianke MA256S 25mm Double Spindle Swiss Type CNC Lathe Sliding Longitudinal CNC Lathe with Syntec System

US$50,000.00
1-2 Sets
US$49,300.00
3+ Sets

Basic Info.

Model NO.
MA256S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC System
Syntec
Transport Package
Waterproof Wood Box
Trademark
Jianke
Origin
China

Product Description

Product Description

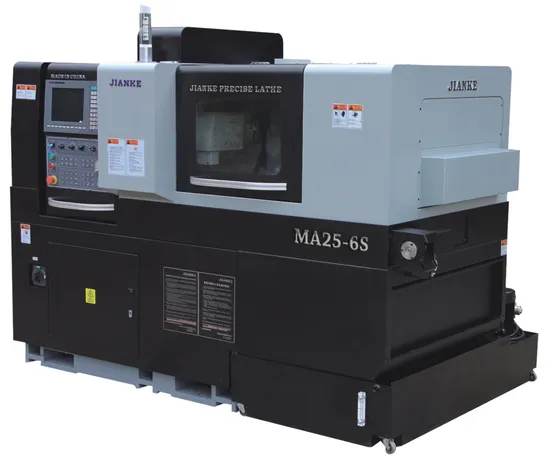

Swiss type CNC lathe double spindle 6 axis model MA25-6S Main spindle & Sub spindle
·excellent performance·ability powerful·Operate flexbile ·Main and sub spindle C axis stantard configration,complete functions ·Excellent performance multi types of tools coordinate
reasonably,multi tool frame rasonably option
·rotary guide sleeve,no guide bush freely option, save material high benefit.

Detailed Photos

Product Parameters
Double Spindle Swiss CNC Lathe MA25-6S
System Taiwan SYNTEC Syntec210TB-A
Control channels Dual channel
Minimum setting unit 0.001mm
Machining
Ability		 Max processing diameter 25 mm
Maximum single feeding length Rotary guide bush 195mm
Without guide bush 1:2.5D(Dia:Length)
Main spindle max drilling Dia axial
(main spindle)		 Φ10mm
Main spindle tapping Dia axial M8
Rotary tools max drilling Dia radial Φ8mm
Rotary tools max tapping Dia radial M6
Sub spindle max drilling Dia Axial
(sub spindle)		 Φ8mm
Sub spindle max tapping Dia axial M6
Tools Tool base arrangement Upper row tool base
Main spindle O.D. tools 6 pieces 1*16X16mm+5*12X12
Main spindle side rotary live tools 4 pieces 2*ER11+2*ER16
Main spindle end face fixed tool 4 pieces ER11/ER16
Sub spindle end face fixed tool 4 pieces ER11/ER16
Sub spindle end face rotary tools 3 pieces ER11/ER16
Sub spindle side rotary tools 4 pieces ER11/ER16
Sub spindle O.D. turning tools 2 pieces 12X12mm
Spindles Main/Sub spindle type Internal oil cooling electric spindle
Main/Sub spindle speed 10000rpm/min
Main/Sub spindle indexing 0.001°
Main/Sub spindle through hole Dia 26mm
Main/Sub spindle height 1018.5mm
Motors Main spindle power(Rated/Max) 2.5kw/3.7kw
Sub spindle power(Rated/Max) 2.5kw/3.7kw
Main/Sub spindle rotary tools motor power 1.1kw
Main spindle side rotary tools speed ER11*2 pieces 10000rpm/min
ER16*2 pieces 6000rpm/min
Sub spindle rotary tools speed Side rotary tools 6000rpm/min
End face rotary tools 6500rpm/min
Moving axis 6 axis X1,Y1,Z1,X2,Y2,Z2
Rapid feeding speed X1,Y2 24m/min
Y1,Z1,X2,Z2 32m/min
Motor power of moving axis 1.0kw
Others Parts collector Short parts Belt conveyor to collect parts
Long parts rear ejection from sub spindle
Power capacity 15kw
Air pressure Above 0.4MPa
Capacity of machining oil tank 250L
Lathe size 2.4m×1.4m×1.7m
Lathe weight 3050KG

Certifications

Packaging & Shipping

Company Profile
Founded in 1999, Jianke Machinery Co., Ltd. is one of the earliest domestic enterprises that involve in the independent research and development of Swiss type precision CNC lathe. The company covers an area of 30,000 square meters. At present, Nanjing Jianke Machinery Co., Ltd. has gradually developed into a machinery manufacturing enterprise integrating R&D, design, manufacturing, sales, installation, service, and imp&exp.
