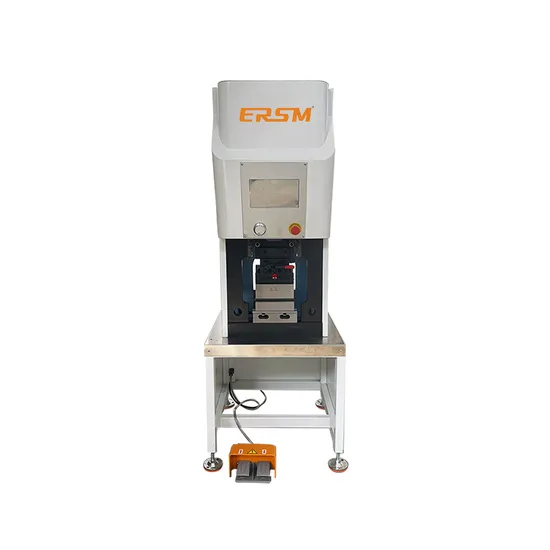

Minimum Servo Motor Controlled Bending Machine

Product Description

Product Features
• Mini CNC press brake, 3 ton 30KN
• Servo motor Drive-Technology provides high precision bending results. • 100% Pure electric power, with no oil. • Up to 50% less energy consumption compared to ahydraulic press brake. • Up to 35% faster compared to a hydraulic press brake. • High efficiency and precision. • High bending speed and less noise. • Full bending length between side frames. • Less maintenance cost.
• Eco friendly. • Friendly user interface.
Product Parameter

Model	EP-302
Bending Force	3Ton(30KN)
Bending Length	200mm
Axis	2
Distance Between Column	300mm
Stroke	120mm
Opening Height	420mm
Back Gauge Stroke	150mm
Main Motro Power	2KW
Approach Speed	200mm/s
Return Speed	200mm/s
Bending Speed	30mm/s
Repeat Positioning Accuracy	±0.01mm
Size	750*750*2980mm
Weight	320kg

FAQ
1. Who are we?
A: We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 21-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.

5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
6.Can we be your agent?
A: Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
