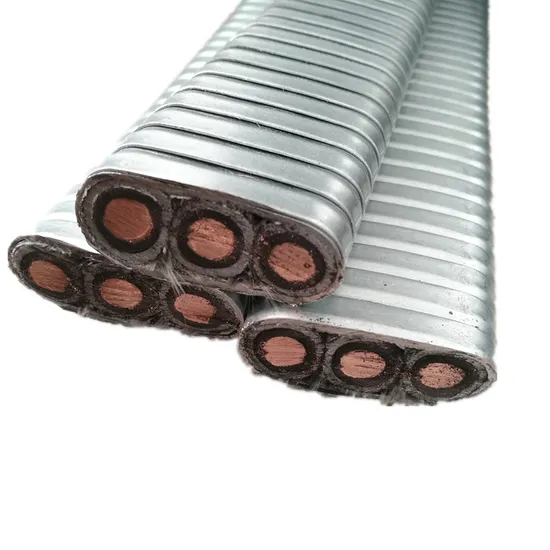

Epr Insulated Lead Sheath Armored Cable for Submersible Oil Pump Esp Cable Flat Round 1 Constructure: Product Name: ESP Cable
Temperature Rating: 90ºC,120ºC,150ºC,180ºC,204ºC,232ºC,260ºC
Voltage Range: 3kV,4kV,5kV,6kV,8kV
Standards: GB/T 16750,IEEE1017,IEEE1018,IEEE1019,API RP 11S5,API RP 11S6
Main Type: QYPN,QYPNY,QYEQ,QYEQNY,QYYEQ,QYYEQEY,QYYFF,QYYEE
Armor Materials: Galvanized Steel Tape,Stainless Steel Tape,Monel Steel Tape
Main Materials: Copper,NBR,EPDM,PI Film,Lead Sheath,PP,Fluoroplastic,Steel Tape etc.
2 Product Introduction:
The product manufactured by us has the characteristics of advanced technology, reliable quality.The main manufacturing equipment is included the ROYLE90 plastic extrude, the rubber continuous vulcanizing process, the interlocked armoring machine made by CEECO, Canada, the continuous sintering process imported from GRILLER, Austria, the Nokia cross-linked cable process, the advanced continuous annealing process and tinned process, etc. Now, the cable and coil end lead wire for submersible oil pump or pump unit can be produced, with different types and specifications, the crosssection of conductor is 42mm2 and below. The well temperature is from 50ºC to 180ºC, the max. continuous working temperature of conductor is 204ºC. The insulation material that can be used is as below: PP, EPR, polyimideF46, fluoroscopic, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer's requirements.
3 Data sheet of esp cable:

Type	Shape	Conductor	Cond.Size	Insulation	Jacket	Temp.	Voltage	Standard
QYPN	Flat	Copper	AWG 1#	PP	NBR	96ºC	3KV	IEEE1017
QYLPN	Flat	Al-Alloy	AWG2#	PP	NBR	96ºC	4KV	IEEE1018
QYPN Shielded	Flat	Copper	AWG3#	PP	NBR	96ºC	5KV	IEEE1019
QYPF	Flat	Copper	AWG4#	PP	PVC	96ºC	6KV	APIRP 11S5
QYPQ	Flat	Copper	AWG5#	PP	Lead Sheath	110ºC	8KV	APIRP 11S6
QYEN	Flat	Copper	AWG6#	EPDM	NBR	120ºC		GOST
QYYFN	Flat	Copper	AWG7#	Polyimide film & Fluoroplastic	NBR	120ºC-150ºC		GB/T16750
QYEQ	Flat	Copper	AWG8#	EPDM	Lead Sheath	120ºC-232ºC
QYEE	Flat	Copper		EPDM	EPDM	120ºC-232ºC
QYYEE	Flat	Copper		Polyimide film & EPDM	EPDM	120ºC-232ºC
QYYEQ	Flat	Copper		Polyimide film & EPDM	Lead Sheath	232ºC
QYYFF	Flat	Copper		Polyimide film & Fluoroplastic	Fluoroplastic	250ºC
QYPNY	Round	Copper		PP	NBR	96ºC
QYPFY	Round	Copper		PP	PVC	96ºC
QYPQY	Round	Copper		PP	Lead Sheath	96ºC
QYENY	Round	Copper		EPDM	NBR	120ºC
QYEQNY	Round	Copper		EPDM	Lead & NBR	120ºC
QYYEQNY	Round	Copper		Polyimide film & EPDM	Lead & NBR	120ºC
QYYENY	Round	Copper		Polyimide film & EPDM	NBR	120ºC
QYEEY	Round	Copper		EPDM	EPDM	120ºC-232ºC
QYEQEY	Round	Copper		EPDM	Lead & EPDM	120ºC-232ºC
QYYEQEY	Round	Copper		Polyimide film & EPDM	Lead & EPDM	120ºC-232ºC
QYYEEY	Round	Copper		Polyimide film & EPDM	EPDM	150ºC-232ºC

4 Test voltage of the finished product before leaving the factory

Rated voltage (KV)	Test voltage(KV)
1.8/3	DC 30/5min or AC 10KV/1min,no-breakdown
3.6/6	DC 35/5min or AC 13KV/1min,no-breakdown

5 Type and Name

Cable type	Description	Max working temperatureºC	Product range (cross section) mm2
QYPN	PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump	96	10,13,16,20,33,42
QYPNY	PP insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump	96	10,13,16,20,33,42
QYEN	EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump	140	10,13,16,20,33,42
QYENY	EPR insulated and NBR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump	140	10,13,16,20,33,42
QYEE	EPR insulated and sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump	175	10,13,16,20,33,42
QYEEY	EPR insulated and sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump	175	10,13,16,20,33,42
QYEQ	EPR insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump	204	10,13,16,20,33,42
QYYEQ	Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump	232	10,13,16,20,33,42
QYYEEY	Polyimide-F46 composite film and EPR insulated, EPR sheathed, galvanized steel tape interlocked armoring, round cable for submersible oil pump	204	10,13,16,20,33,42
QYJEQ	Polyimide-F46 composite film and EPR insulated, lead sheathed, galvanized steel tape interlocked armoring, lead wire for submersible oil pump	200	10,13,16,20,33
