China Agricultural Equipment, Farm Equipment Used in The Grain, Tractor Combine Harvesters
| US$29,998.00-99,999.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
FOCUS-COMBINE
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
CE
Color
Yellow
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry, Farm
Warranty
12 Month
Overall Dimensions (L*W*H)
6100*2800*3420
Overall Weight
6800kgs
Rated Power
140kw
Rated Speed
2200
Fuel Tank Volume
400L
Working Width
2750
Min. Ground Clearance
330
Working Speed
1.6~14
Concave Sieve
Grid
Cleaning Screen
Air Elutriator
Transport Package
Nude Packing, by Container or Roro Ship
Specification
6100*2800*3420
Trademark
FOCUS
Origin
China
HS Code
8433510001
Production Capacity
50000 Untis Per Year
Packaging & Delivery
Package Size
750.00cm * 290.00cm * 330.00cm
Package Gross Weight
7500.000kg
Product Description

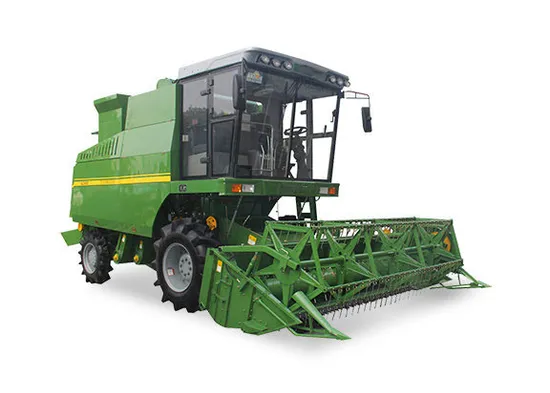

Product DescriptionChina Agricultural Equipment,Industrial Equipment Used in the Grain,Tractor Combine Harvesters
The wheeled combine harvester is mainly used for harvesting wheat, and can also be used to harvest crops such as corn, sorghum, rice and millet after the corresponding functional components are changed, achieving a multi-purpose machine.With single drum longitudinal axial flow threshing technology, it has better separation performance, thus reducing the grain crushing rate and improving the cost performance.
It is equipped with Yuchai engine meeting EUR 3 emission standard, with strong power and a torque reserve of up to 19%, which can meet the needs of different working environments.It is equipped with the hydrostatic drive chassis, with comfort, energy saving and stepless speed control, which can meet the needs of users for different operation speeds.The adjustable side-mounted console centrally arranged around the driver and adjusted together with the air-suspended seat makes every control within easy reach and convenient to operate.
Detailed Photos
Product Parameters
| Model | Unit | FS100 | |
| Overall dimensions (L*W*H) | mm | 6100×2800×3420 7600×4450×3420(4m wheat header) | |
| Overall weight | kg | 6800 7450((4m wheat header) | |
| Engine | Rated power | kW | 140 |
| Rated speed | r/min | 2200 | |
| Emission | / | high-pressure common rail | |
| Fuel tank volume | L | 400 | |
| Working width (wheat header) | mm | 2750/3000/3250/4000 | |
| Min. ground clearance | mm | 330 | |
| Working speed | km/h | 1.6~14 | |
| Productivity per pure working hour | hm²/h | 0.7~1.5 | |
| Fuel consumption per unit area | kg/hm | ≤35 | |
| Threshing drums | Quantity | Pcs | 1 |
| Type | / | Single longitudinal axial flow | |
| Outer diameter * Length | / | φ620*3180 | |
| Fan ф | Typ | / | Centrifugal |
| Diameter | mm | φ450 | |
| Quantity | Pcs | 1 | |
| Concave sieve | / | Grid | |
| Cleaning screen | / | Air elutriator | |
| Grain collection box | Volume (L) | / | 3200 |
| Unloading mode | / | Mechanical unloading | |
| Drive type | / | Mechanical | |
