Tracked Excavator Jg-80L Rail Machine Sleeper Layer and Changer for Track Renewal
| US$45,000.00-48,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG-80L
Customized
Customized
Certification
ISO9001
Type
Sleeper
(Length*Width*Height) Travel Position
6100*2800*2650mm
Gauge Base
2600mm
Track Gauge
1570mm
Width of Crawler
400mm
Ground Clearance of Counterweight
780mm
Min Ground Clearance
280mm
Transport Package
Nude Packing
Specification
6100*2800*2650mm
Trademark
JingGong
Origin
China
HS Code
8479109000
Production Capacity
3000 Units/ Year
Product Description

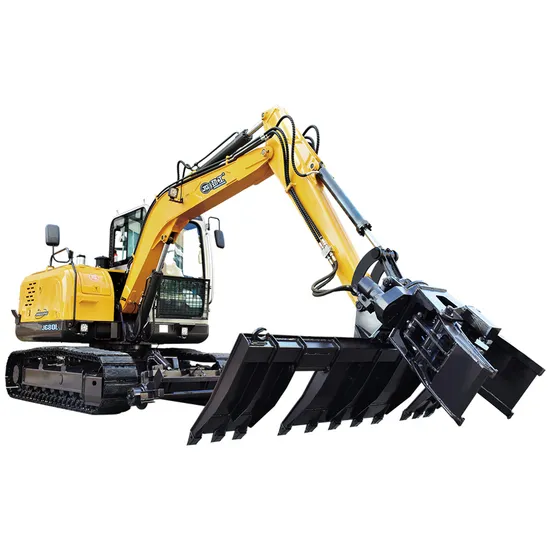

JG-80L Rail Machine Layer Changer ExcavatorThis small crawler excavator is specially designed for the replacement of railway sleepers. The average Each pillow changing
machine can replace 1.5 pillows per minute, which greatly reduces the labor management cost and improves the operation safety.
The operating efficiency after using the Jingong railway pillow replacement machine can reach 20 manual workers.
Its grab can be customized according to the actual width of customer's local sleepers.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maimum digging force | 45KN | |||||||||
| Back-end radius of gyration | 1800mm | |||||||||
| Max. Opening Width of Grab | 650mm | |||||||||
| Min. Opening Width of Grab | 200mm | |||||||||
| Max. RADIUS Grabing Weight | 0.5~0.6t | |||||||||
| Max,Width of Grab | 2800mm(customizable) | |||||||||
| Grapple rotation angle | 360° | |||||||||
| DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
| Wheel base | 2600mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| efficiency | ≥40pic/h | |||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8000kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 48KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 120L/min | |||||||||
| Metering gear pump | 2*28ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| (High speed/low speed) | 4.5/2.5km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.25m3 | |||||||||
| Revolution Overdrive Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
