Etching Chemical Photo Engraving on Sgz Zinc Photoengraving Plate for Printing

Product Description

Product Description

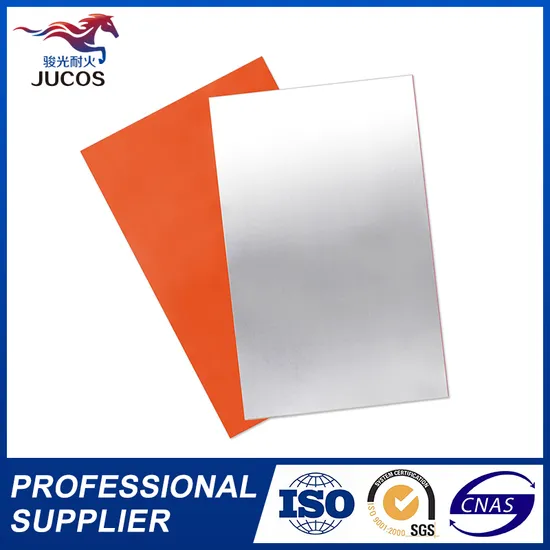

The microcrystalline zinc plate for printing is popular among users because of its excellent product quality and stable physicaland chemical properties.Our company introduced the pre-painted photosensitive glue production line to transform the process technology equipment. Under the guidance of Japan and other experts, the first domestic production of microcrystalline zinc plate for pre-coated photosensitive adhesive printing reached the same level in Japan and the United States. Filling a gap in China's printing plate materials. Characteristics 1. Eliminate the traditional process plate making method when making plates: grinding plate, gluing coating, printing plate, plate washing, developing, baking, long time, and troublesome operation. This products adopts advanced technology and imported materials. It has photosensitive adhesive on the surface. It can be directly printed on the plate. It can be corroded immediately after development and rinsing. It is easy to operate, fast, saves labor and time, and can meet the urgent needs of customers.
2. Since the product does not need to be baked after printing, it shows that the physical and chemical properties of the product are more stable, and the film is firm, which can produce delicate patterns, such as laser plates, etc.
3. This product is made of higher quality materials. The surface is absolutely free of any impurities. The use rate is 100%, which not only ensures the purity of the product, but also ensures the strength of the material.
4. The surface of the zinc plate is coated with photosensitive glue, which is easy to expose, pay attention to moisture and store in a coll place in the dark room to ensure product quality.
5. Product color: red or black film on the back, blue photoresist on the surface.Technical Data Sheet

Name	Chemical Component
Zinc Plate	Zn	Mg	Pb	Fe	Cd	Cu	Sn	Al	Other
	99.99	0.05	0.005	0.006	0.005	0.001	0.001	0.02	rest...
Size: 1000 x 500 x 1.0mm;1000 x 500 x 1.25mm;1000 x 500 x 1.4mm;1000 x 500 x 1.5mm; 1000 x 500 x 1.75mm; 1000 x 500 x 2.0mm;1000 x 500 x 2.5mm;1000 x 500 x 3.0mm; 1000 x 500 x 4.0mm;1000 x 500 x 5.0mm;1000 x 500 x 6.0mm;1000 x 500 x 7.0mm Other size can be produced as per customer requirements.
Size Tolorance: ±0.03

Production Process
Application
Quality comparison
Technical problems and solutions
Pitted surface/ pimpals
Problems due to excessive additives or insufficient acid concentration or dosage. It is recommended to reduce additives or increase the amount of acid. Specific please provide the use parameters, our technicians will provide one-to-one guidance.
The slope is not smooth enough zinc plate
Problems caused by insufficient acid concentration or dosage. It is recommended to increase the amount of acid. Specific please provide the use parameters, our technicians will provide one-to-one guidance.
Packing and Shipping
In order to better ensure the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services and transportation.
Company Information
ZIBO JUCOS CO.,LTD, was created in 2008 with combination of global expertise and local knowledge, aim to supplying range of printing plate products, services and solutions to the global Etching Plate, Embossing , Hot stamping plate and Etching Chemical Machine.
JUCOS located in Shandong Zibo. We aim to understands the exact intelligence of the customers world wide to design, offer, manufacture and market high quality & performance oriented etching plate products.
Our Services
Etching Plate Free samples are available by freight collect;
Strict QC & Fast delivery
High quality goods, Perfect Pre-sales and after-sales service.
JUCOS will update you any production process after placing order.
We have special after-sales team to solve your problem during using our products.
Any question will be get our feedback in the first time.
Q & A
Q1 : How can you control your quality?
A1 : For each production processing, JUCOS have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2 : Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q3 : Do you provide free samples?
A3 : Of course, free samples are available.
Q4 : What is your lead time?
A4 : It usually needs about 5- 30 days after receiving the PO.
Q5 : What is the warranty of your products?
A5: Our products have at least 1 year warranty,if any quality problems, we will take responsibility of the cost of the shipment and the replacement.
Q6 : What's the MOQ of trial order?
A6 : No limit, we can offer the best suggestions and solutions according to your condition.
Q7 : What's the term of payment?
A7 : 30% T/T as down payment; 70% T/T before delivery time.
Q8 : Can you provide technical support?
A8 : We have professional technical staff to provide technical support.
Q9: Why choose us?
A9: We can not only provide you high quality products with competitive price, but also we can supply good technique service which can help you solve problems.
