Universal Milling Machine X6325 X6330 Vertical Turret Mill Machine
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325
Object
Hardware
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Product Name
Universal Milling Machine X6325 X6330 Vertical Tur
Spindle Travel(mm)
127
Table Size(mm)
254*1270
Spindle Speed(Rpm)
66-4540
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84595900
Production Capacity
200 PC/Month
Packaging & Delivery
Package Size
150.00cm * 160.00cm * 180.00cm
Package Gross Weight
1300.000kg
Product Description

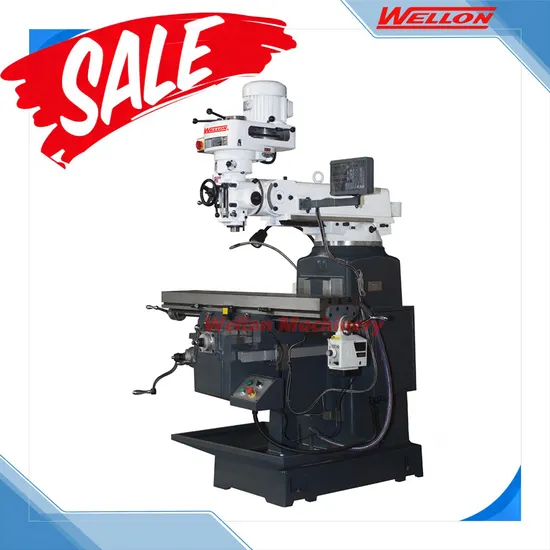

Product DescriptionProducts Description:universal milling machine X6325 X6330 vertical turret mill machine
Performence Features: X6325/X6330 Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline.
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan
4.Harden the slide way and table surface
Technical parameter:
| Model | X6325 | X6330 |
| Table size | 254*1270 | 305*1370 |
| Long travel(mm) | 850 | 900 |
| Cross travel(mm) | 420 | 360 |
| Vertical travel(mm) | 420 | 400 |
| T-slot No.and size(mm) | 3*16 | 3*16 |
| Ram travel(mm) | 470 | 500 |
| Distance from spindle nose to table(mm) | 0-420 | 0-400 |
| Spindle speed | 16steps: 66-4540 | 16steps: 65-3750 |
| Spindle hole taper | R8 / ISO30 | ISO40 |
| Auto.quill feed | 3 steps 0.04/0.08/0.15 | 3 steps 0.04/0.08/0.15 |
| Spindle travel(mm) | 127 | 127 |
| Spindle motor | 2.25kw/3hp | 3.75kw/5hp |
| Head swivel | 90° | 90° |
| Head tilting | 45° | 45° |
| Dimension of package | 1516*1550*2080 | 1566*1650*2080 |
| G.W/set(kgs) | 1200/1300 | 1450/1600 |
Standard Accessories
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Guide way protection
Optional parts:
3-axis DRO
X-axis auto power feed
Y-axis auto power feed
Z-axis auto power feed
Air draw bar
Variable speed
Machine vice 160mm
Separately operate panel box Company Profile
