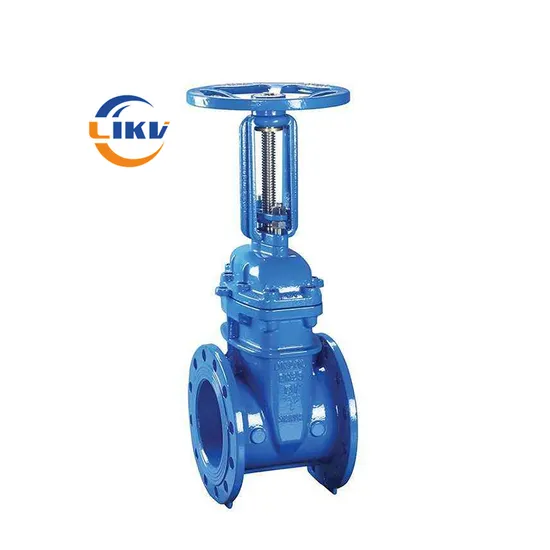

DIN 3352- F4 Awwa C509 Outside Yoke Rising Stem Osy Frame Support Soft Seated Gate Valve
Basic Info.
Model NO.
LK-Z15
Type
Straight-through
Material
Cast Iron
Connection Form
Flange
Pressure
Low Pressure
Actuator
Manual
Thread Position of Valve Rod
Inside Gate Valve
Usage
Flow Control
Application
Industrial Usage, Water Industrial Usage
Rising or Non-Rising
Rising and Non-Rising
Product Type
Gate Valve
Body
Ductile Iron, Carbon Steel, Stainless Steel
Gate
Ductile Iron + EPDM or NBR, Stainless Steel
Allen Bolts
Carbonization Process
Seals
NBR, EPDM
Bonnet
Ductile Iron, Carbon Steel, Stainless Steel
Stem
Stainless Steel
O-Ring Seals
NBR
Bolt
Carbon Steel, Alloy Steel, Stainless Steel
Transport Package
Wooden Case
Specification
DN50-DN1200
Trademark
Like Valve
Origin
China
HS Code
8481804090
Production Capacity
1000000
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 110.00cm
Package Gross Weight
600.000kg
Product Description
DIN 3352- F4 RISING STEM SOFT SEATED GATE VALVEMaterials of main parts
| Part name | Material |
| Body | Ductile iron, Carbon steel, Stainless steel. |
| Gate | Ductile iron+EPDM or NBR, Stainless steel |
| Allen bolts | Carbonization process |
| Seals | NBR, EPDM |
| Bonnet | Gray iron, Ductile iron, Carbon steel, Stainless steel |
| Stem | Stainless steel |
| O-ring seals | NBR |
| Thrust bearings | Tin bronze |
| Bolt | Carbon steel, Alloy steel, Stainless steel |
| Gland | Ductile iron, Carbon steel, Stainless steel |
| Dust Cover | NBR |
| Handwheel | Malleable iron |
Product Category
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L | F4 | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 |
| BS | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | |
| F5 | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 | 550 | 600 | |
| Hmin | 322 | 332 | 350 | 420 | 581 | 581 | 736 | 882 | 1009 | 1300 | 1380 | |
| Hmax | 374 | 398 | 429 | 524 | 721 | 736 | 942 | 1013 | 1117 | 1655 | 1805 | |
Product details
Qualification certificate
Production process
Production equipment
If you want to learn more, please contact us
LIKE VALVE (TIANJIN) CO., LTD
Sales Manager
Yang Lee
http://likevalve.en.made-in-china.com
Address: H12 Tengfei Base of Xiaozhan Industrial Area, Jinnan District , Tianjin, China
We will always be here to try our best to provide you our best service!
