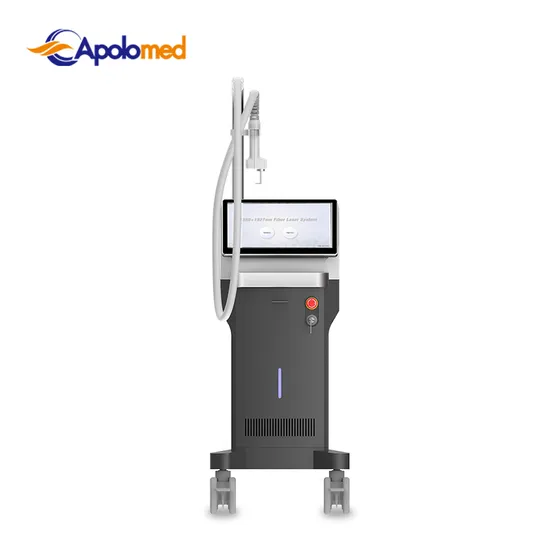

2024 New Fractional Fiber Laser 1550nm+1940nm Dual-Wave Fiber Laser Machine

Product Description

2024 New 1550nm Fractional Fiber Laser 1550nm+1940nm Dual-Wave Fiber Laser Device
Fiber laser output, shorten recovery time
Hand-drawing function supported
4 different scan shapes
Principle1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionized beams not only trigger the healing process of the skin, but also keep the issues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetrates deep into the dermis, remolding Collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restores smooth after several treatments. The heat of laser only passes deeply through the factional damaged area. This allows the skin to heal much faster than if the whole area was treated. These driver the better clinical results and make less downtime and side effect.
1.Before treatment,a severdeficiency and disorder of collagen cells result in badskin conditions like aging and dull skin tone.
2.1550 nm fractional fiber laser has a scan of the targeted area leaving pixe-like.
treatment zones,which ensures the effectiveness of treatment.
3.Thousands of fractional thermal zones are formed to stimulate a massive increase in the number of collagen cells.
4.Eventually,an obviousresult of skin rejuvenation can be expected.The 1940nm dot-matrix thulium laser is a solid laser with an output wavelength of 1927-1940nm. It belongs to long pulse infrared laser; The main target of thulium laser is water, but melanin and hemoglobin in the skin also absorb the laser energy. It belongs to the category of non-exfoliation-micro-exfoliation treatment, and its effect on the skin belongs to the dermal effect. The heat accumulation and temperature rise of the dermis is higher than that of the epidermis, and the depth of thulium laser penetration is deeper, and the thermal dispersion effect of the skin is obvious.
Detailed PhotosProduct Description
Advantages·ARM-A13 CPU,Android O/S 11,HD screen(2k:1920*1080)
·Treat a wider range of indications with only one machine
·Make select specific treatment area easily; irregular area can be set up
·Compact handpiece comfortable and easy treatments
·Density is fully adjustable
·Just touch screen to easily change the treatment for optimal results
·Good and stable energy ensure great result
·RF ID management control design, Apply Android operation system.
Applications-Skin rejuvenation,Skin toning
-Wrinkle removal Acne scar removal
-Skin resurfacing
-Stretch mark removal
Specifications

Wavelength	1550+1940nm		1940nm
Laser power	15+15W		15W
Laser output	1~120mJ/dot (1550nm)	1~100mJ/dot (1940nm)	1~100mJ/dot
Density	9~225 PPA/cm2(13 level)
Scan area	Max.20*20mm
Pluse width	1~20ms (1550nm)	0.4~10ms (1940nm)	0.4~10ms (1550nm)
Operate mode	Array,Random
Operate Interface	15.6" True color touch screen
Cooling system	Advanced air cooling system
Power supply	AC 100V~240V, 50/60Hz
Dimension	43*46*104cm(L*W*H)
Weight	35Kgs
