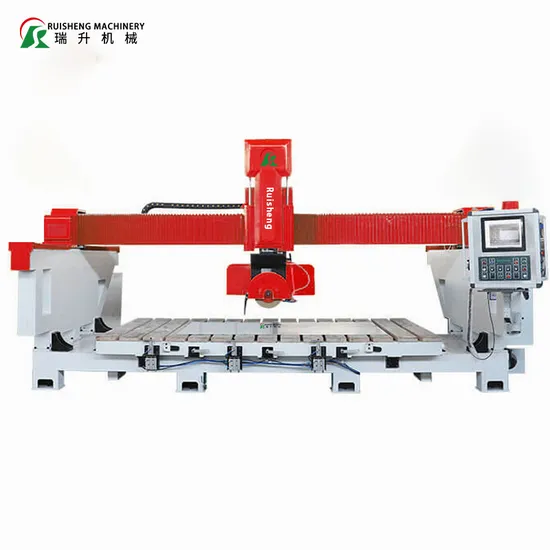

Ruisheng Bridge Saw Stone CNC Machine Cutting for Quartz Marble Granite Kitchen Countertop Cutter
| US$42,000.00-45,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Bridge Saw Stone
Type
Automatic Mono Bridge Saw
Usage
Granite, Marble
Application
Machinery & Hardware, Art & Craft, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE
Head Rotation
0-360°
Head Tilting Position
0-90°
Table Tilt
0-85°
Gearing
Gear Rack
Diamensions of Working Platform
3500X2000mm
Transport Package
Plastic Packing
Specification
5800× 3400× 3000mm
Trademark
Ruisheng
Origin
Fujian, China
HS Code
86841010
Production Capacity
50pieces/Month
Packaging & Delivery
Package Size
580.00cm * 340.00cm * 300.00cm
Package Gross Weight
6000.000kg
Product Description
Product DescriptionRCNC-500 with 4 axis interpolation and 1 axis electronic controlled, is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease.
| Name | RCNC400-5 | Unit |
| Diameter of saw blade | ø400-ø500 | mm |
| Dimension of working platform | 3300x2000 | mm |
| Max. cutting length | 3300 | mm |
| Max. cutting thickness | 140 | mm |
| Power of cutter frame reciprocating motor | 3 | kw |
| Power of crossbeam shifting motor | 1.2 | kw |
| Power of hydraulic station motor | 2.3 | kw |
| Power of lifting motor | 0.88 | kw |
| Max. lifting stroke | 300 | mm |
| Power of main motor | 15/18.5 | kw |
| Gross power | 27/30 | kw |
| Power of cutter frame reciproctating motor | 2 | kw |
| Water consumption | 3 | m³/h |
| Dimensions | 5800×3400×3000 | mm |
| Gross weight | 6000 | kg |
