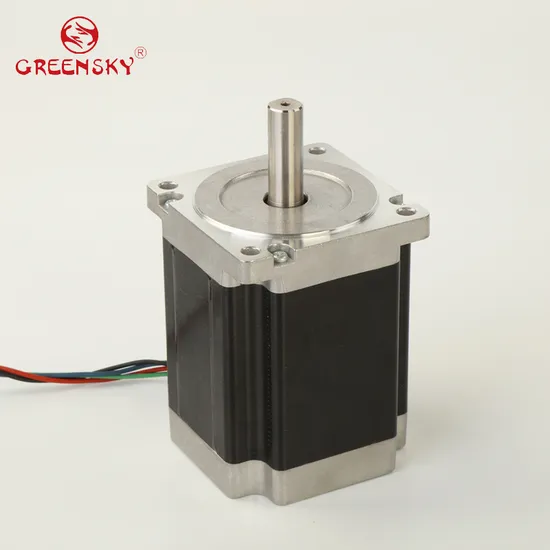

2 Phase High Torque 1.8 Degree 86mm NEMA 34 Hybrid Stepper Motor for Automatic Product
| US$1.00-50.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
NEMA 34
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control
Number of Poles
4
Operate Mode
Three-Phase Six-Step
Type
Planetary BLDC
Certification
CE
Brand
GS
Warranty
1 Year
Sample
Available
Step Angle Accuracy
1.8°
Insulation Class
B (F Available)
Shaft Type
Round, Flat, Pulley, Gear...
Transport Package
Plastic Bag and Carton Packing
Specification
NEMA34 86*86mm
Trademark
GS
Origin
Zhejiang, China (Mainland)
HS Code
85013100
Production Capacity
30000PCS Per Month
Product Description
2 Phase High Torque 1.8 degree 86mm Nema 34 Hybrid Stepper Motor for Automatic Product
Characteristics1. Precise position control.2. Speed control function.3. Forward/reverse rotation, emergency stop and lock function.4. High-precision position control at low speed.5. Long service life.
Technical Specification
| Item | Specifications |
| Step Angle Accuracy | 1.8°/0.9°±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºC Max (rated current, 2-phase on) |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Insulation Class | Class B (Class F is available) |
| Protection Grade | IP40 |
| Model | Poles | Current | Resistance | Inductance | Holding Torque | Detent Torque | Weight | Length (L) |
| A | Ω | mH | Nm | mNm | KG | mm | ||
| 86BYG80-4550 | 2 | 5.5 | 0.45 | 3.5 | 4.5 | 160 | 2.3 | 80 |
| 86BYG80-4550 | 4 | 4 | 0.8 | 3.5 | 3.5 | |||
| 86BYG98-4500 | 2 | 5 | 0.61 | 8 | 6 | 200 | 2.8 | 98 |
| 86BYG98-6300 | 4 | 3 | 1.5 | 6 | 4.5 | |||
| 86BYG114-4600 | 2 | 6 | 0.5 | 6 | 8.5 | 250 | 3.5 | 114 |
| 86BYG114-6400 | 4 | 4 | 1.2 | 6.5 | 7.2 | |||
| 86BYG128-4550 | 2 | 5.5 | 0.5 | 5.5 | 9.5 | 280 | 4.3 | 128 |
| 86BYG128-6400 | 4 | 4 | 1 | 4.4 | 8.2 | |||
| 86BYG150-4600 | 2 | 6 | 0.72 | 9 | 12 | 350 | 5.2 | 150 |
| 86BYG150-6400 | 4 | 4 | 1.5 | 8.8 | 10.8 |
Drawing
View Of Item
