16 Full Travel Backlight Keys Metal Keypad
| US$30.00-80.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MKP120-16BL
Material of Keys
High Temperature-Resistant Polycarbonate
Material of Front Panel
304 Stainless Steel
Material of Back Panel
Aluminum
Mounting Method
Panel Mounting(From Behind)
Key Travel
2.0mm
Sealing Protection
IP65
Certification
Ce, FCC
Wireless
Wired
Shape
Standard
Text Input
Multi Bond
Key Numbers
16
Working Principle
Carbon Pill to PCB
Key Technology
Silicone Rubber
Product Positioning
Industrial Machine or Kiosk or Workstations
Interface
USB, PS/2, RS232 or Pin
Application
Industrial Machine or Kiosk or Workstations
Transport Package
Neutral Packing-Carton Box
Specification
Panelmount
Trademark
KINGLEADER or customer′s preference
Origin
Shenzhen, Guangdong, China
HS Code
84716071
Production Capacity
30000 PCS/Month
Product Description

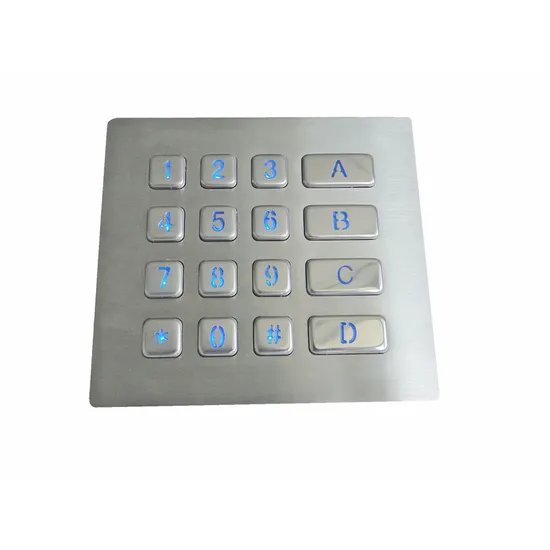

Rugged illuminated NEMA 4 keypad with 16 back-lit keys, ideal for indoor or outdoor access control system or other low-lit or dark environmentsPart Number:MKP120-16BL
| Technical Specification | |
| Material | |
| Front panel | 304 stainless steel |
| Keys | 304 stainless steel |
| Back panel | Aluminum |
| Number of Keys | 16 |
| Matrix | 4 x 4 |
| Function | |
| Backlight or Non backlight | LED backlight illuminated |
| Color of backlight | Red,Green or Blue |
| Electrical Data | |
| Interface | USB or PS/2 or RS232 (With electronic controller board) 11PIN connector (Without electronic controller board) |
| Certification | CE,FCC |
| Environmental Characteristics | |
| Operating temperature | -20º C to + 60º C |
| Key travel | 2.0mm |
| Lifetime (cycles) | Min 5, 000, 000 actuations |
| Sealing protection | IP65/NEMA4X from the front |
| Layout | Customizable available |
| Dimension | 120.00 x 110.00 mm(W x D) (front panel) |
| Application | access control system, vending machine, public phone or other application in dark or low-lit environment |
