Sesame Peanut Green Mung Bean Grain Seed Cleaning Machine Seed Cleaner
| US$4,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
5XZC-5DH
Item
Seed Cleaning Machine
Function
Remove Impurity From Grain Seeds
Application
All Types Grain Seeds
Cleaning Rate
98%
Power
7.74kw
Transmit
Belt Transmit/ Drive
Buckets Type
PVC Buckets
on Site Service
Available
Input
3 Phase Electricity
Customized
Available
Color
White
Advantage
with Cyclone and Air Locker
Spare Parts
V Belt
Features
Air Suction Type
Suitable for
Sesame, Peanut, Green Mung Bean ,Soybean
Transport Package
Usually Export Standard Wooden Boxes
Specification
ISO9001, TUV
Trademark
SYNMEC
Origin
Hebei, China
HS Code
8437109000
Production Capacity
20 Sets Per Week
Product Description
Bean Grain Seed Cleaning MachineMachine Feature
Grain Seed Cleaning machine is professionally used for cleaning and grading seeds/grains. It can be customized. It is a primary equipment for grain cleaning.
Working principle
Light impurities can be sucked out by the air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time, the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can process all kinds of seeds.
Parameter reference
| Model No. | Capacity (T/H) | Power (KW) | Weight (KG) | Sieve Size (MM) | Dimensions (MM) | Remarks |
| 5XZC-5DH | 5 | 7.74 | 1.6 | 2000×1000 | 4970×1900×3100 | With cyclone dust separator |
| 5XZC-7.5DS | 7.5 | 10.1 | 1.7 | 2400×1250 | 5150×2160×3500 | |
| 5XZC-15 | 10 | 10.5 | 1.8 | 2400×1500 | 5400×2350×3500 |
Application
The 5XZC-5DH seed cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

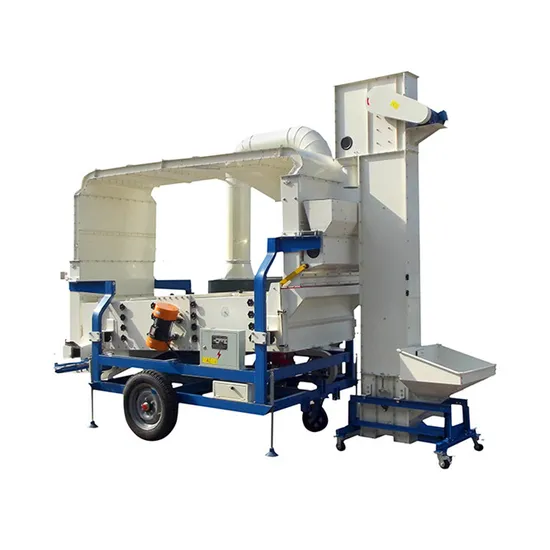

Seed Cleaning Machine different views
The 5XZC-5DH seed cleaning machine equipped with Cyclone dust separator.
Cyclone will collect the light impurity as leaf, twig, dust, etc.
5XZC-5DH Seed cleaner & grader hs 3 sieve layers. Each layer has different outlets.
