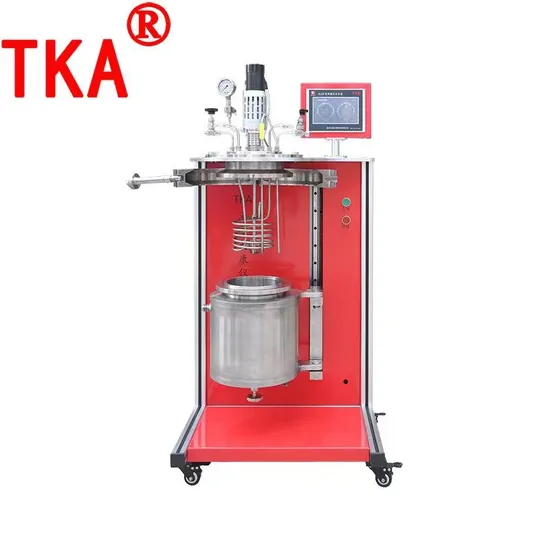

5000ml Pilot High Pressure Reactor

Product Description

The Pilot High Pressure Reactor is suitable for chemical and chemical reactions that require simultaneous temperature measurement, addition of inert gases, high temperature and high pressure, on-line PH measurement, conductivity measurement and precision chemical synthesis experiments. Application examples: catalytic reactions, high-temperature and high-pressure synthesis, kinetic testing, Fischer-Tropsch reactions, hydrogenation reactions, polymerisation reactions, etc.
Main Features Pilot high-pressure reactor for chemistry, chemical industry, ultra-high temperature and high pressure and negative pressure under the synthetic reaction or catalytic reaction need to simultaneously determine the pressure, temperature, determination of rotational speed and the addition of inert gas protection, levelling the pressure and the realization of on-line sampling or on-line refuelling and other conditions of the experiments, for all kinds of flammable, explosive, highly toxic, precious media and other penetration * of the chemical medium for stirring the reaction is the petroleum, chemical industry, organic synthesis, polymer materials polymerisation, food and other processes for sulfurisation, fluoridation, hydrogenation and other reactions ideal non-leakage reaction equipment, Organic synthesis, polymer materials polymerisation, food and other processes such as sulphurisation, fluoridation, hydrogenation and other ideal non-leakage reaction equipment. The pilot high pressure reactor has mechanical stirring function and programme temperature control function.
Product Parameters

Model	JLGF-5000	Volume	5000ml
Working Pressure	≤12MPa	Design pressure	16MPa
Working Temperature	≤300ºC	Design temperature	350ºC
kettle body material	316L Stainless steel,Alloy material optional	Cooling coil	Yes
Sealing methods	Magnetic coupling static seal	Lifting method	Stepper motor drive, automatic lift
Paddle form	Propeller stirring paddle, two-blade stirring
Opening and closing type	KF quick-screw one-button opening and closing	Magnetic coupled condenser	Yes
Heating methods	Large surrounding copper module electric heating (dual control mode), power: 2.5KW
Insulation methods	External insulation of the kettle cavity,the insulation cover is water-resistant,not to easy rust,and has excellent thermal insulation
Open methods	Kettle cover and kettle body separation type,automatic lift opening and closing
Kettle Cover opening	7ports,respectively for stirring,temperature measurement ,pressure display,Safety pressure relief,exhaust,air intake,overpressure,relief pressure12Mpa
