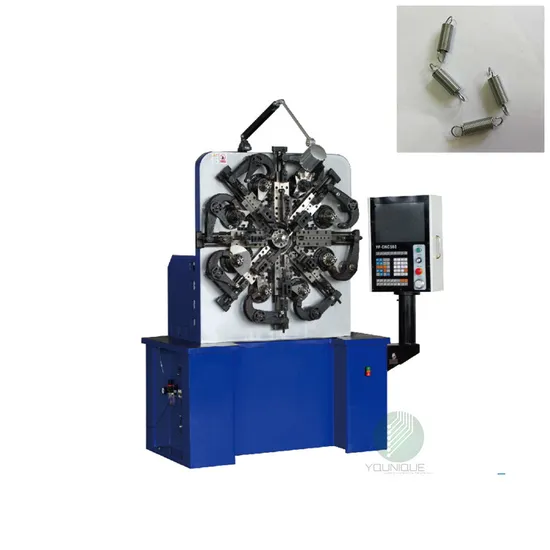

CNC Camless Metal Wire Bending Machinery Spring Forming Making Machine

Product Description

Product Description
The cam CNC spring machine can be produced (0.2-6.0mm wire diameter).
The wire-turning spring machine is continuously developed on the basis of the traditional universal spring machine with cam (eight-jaw spring machine).
The conventional three-axis eight-jaw machine has a wire feed shaft.
In order to make the formation and processing of springs more convenient and more complicated, the company has developed the curling function and the function of the spinning system.
The crimp function has a detachable installation function, which has a faster processing speed for corner processing and arc bending.
The function of the wire transfer system solves the problem that the entire wire feed of the spring machine can be rotated 360 degrees in the forward and reverse directions during the wire feed process.
Multiple angle forming and cutting, also improve the working efficiency of the machine, more convenient debugging, simpler forming, more convenient operation, more powerful functions.
Suitable for the production of double torsion springs, straight springs, pagoda springs, tension springs, Rectangular spring wire forming, steel skin vortex spring, spring and various fancy springs, complicated and difficult shaped springs, etc.
Technical Parameters:

Model		YE-CNC502
Wire diameter of coiled material		φ0.2-2.5mm(iron wire φ0.5-3.5mm)
Max outer diameter of coiled spring		Max φ60mm
Wire feed instruction value		±0.01-9999.99
Max wire feed speed		0-110m/min
Cam instruction value		±0.1°-359.9°
Cam rotation speed		1-100RPM
Wire feed servo power		2.7KW
Core-switching servo motor		0.75KW
Cam servo motor		2.7KW
Power supply		380V 50HZ
machine dimensions		1500*900*1900mm
total weight		800kg

Technical Parameters
Main Application
Company Profile
Certifications
Packaging & Shipping
FAQ

1. Q: What information will be helping to get an accurate quotation from us?
A: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
2. Q: What is the power supply of the machine?
A: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
3. Q: What is the payment term?
A: The payment term is 50% deposit as PI confirmation, and 50% should be finished before the shipment. We also accept other payment term.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receiving deposit. But it depends on machine model. Some of them could be shipped within 10 days.
5. Q: What is the guarantee period of the machine?
A: The guarantee period is one year from the date of B/L.
