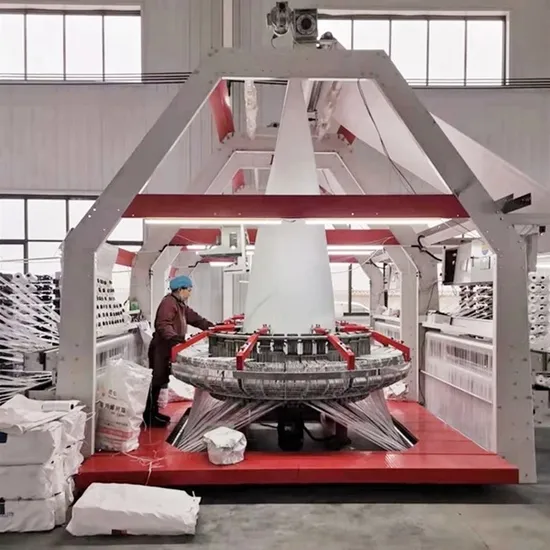

Big Circular Loom For Container Bag / Jumbo Bag

Product Description

Product Description

Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
We can produce the complete line machines in the below: PP WOVEN BAG PRODUCTION LINE PP WOVEN BIG BAG PRODUCE LINE PP.HDPE SHADE NET PRODUCTION LINE PP MAT PRODUCTOON LINE PP LENO MESH BAG PRODUCTION LINE This machine is used to weave endless tubular or flat heavy or light fabric of PP or HDPE for jumbo bags, container bags, geotextiles, tarpaulins, etc. Product Parameters

Model	S-YZJ-1700/6S	S-YZJ-8/2200
Number of shuttles Revolution Weft density Number of warp Weaving folding width	6pcs 70-110r.p.m. 8-16wefts/inch 1900pcs 1100-1700mm	8pcs 50-90r.p.m. 8-16wefts/inch 2500pcs 1700-2200mm
Bobbin
Inner diameter	38mm	38mm
Length	230mm	230mm
Max. diameter of weft package	90mm	90mm
Max. diameter of warp package	100mm	100mm
Length of traverse	200mm	200mm
Surface winder Corn width Max. roll outer diameter	1700mm 1000mm	2400mm 1000mm
Winder motor	25kg.m	50kg.m
Warp infeed motor	12kg.m×2pcs	18kg.m×2pcs
Main motor	5.5kw	7.5
Installed power	6kw	8Kw
Over dimensions (L×W×H)	13520×3300×4300mm	14000×3500×4500mm

Detailed Photos
