Wood Plastic WPC PVC PE ABS PS Window Profile/Ceiling/Grating Plate/ Board/Wall Panel/ Trunking/ Corner/ Edge Banding/Sheet/ Door Frame Extruder Making Machine

Product Description

The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.
PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on. And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window.
Features:
1-Capacity of main frame can be optionally chosen from 60-700 kg/hour.
2-With different molds, it can products different kinds of profiles.
3-The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.

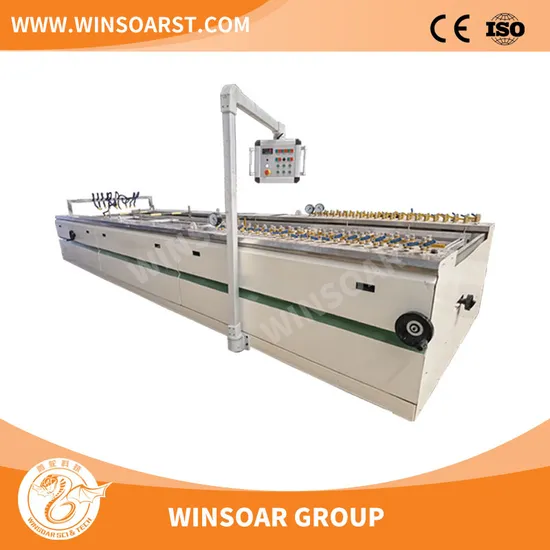

4-Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5-Movement speed and drawing speed of cutting machine keep synchronous.
6-All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7- Powder & dust suction device can be provided.
8- The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9-With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.
Technical Parameter:

Model	Profile Width	Extruder model	Motor power	Max.extrusion capacity	Calibrating platform length
WS-200	200mm	51/105	22kw	100-120kg/h	4000mm
WS-300	300mm	65/132	37kw	150-180kg/h	6000mm
WS-400	400mm	65/132	37kw	150-180kg/h	6000mm
WS-300	600mm	65/132	37kw	150-180kg/h	8000mm
WS-600	600mm	65/13 or 80/156	37 or 75kw	150-350kg/h	6000mm
