C95400 Bronze Bar Brass Rod Copper Round Bar Tin Bronze

Product Description

Product Description
We provide all kinds of bronze bar such as Phosphor Bronze, Aluminum bronze, Tin bronze and Beryllium copper.
Phosphor bronze It combines very good cold workability with high strength and hardness. The alloy is corrosion resistant and can be well soldered and brazed, yet it still has good electrical conductivity.
Aluminum bronze is a pale gold-colored alloy composed of copper and usually five to ten percent aluminum,usually especially for corrosion-resistant parts, for wear-resistant bearings, bushings, gears.
Tin Bronze is a versatile material family known for corrosion resistance with higher strength.
Beryllium copper is an age-hardening alloy that attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms, or complex shapes. It is valued for its elasticity, corrosion resistance, stability, conductivity, and low creep.

Technical parameters
Material	C95400 Bronze
Size	Standard OD:22,25,27,28,30,32,38,42,45,48,50,54,57,60,63.5,68,70,73,83,89,95, 102,108,114,121,127,133,140,146,152,159,168,180,186,194,203mm.
	Thickness:3mm~100mm;Length:3000mm-6000mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish,turn,peel
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing,wooden case,carton,woven bag or at client's requires
Delivery time	In 20-30 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai, Dalian, shenzhen port.

Chemical Composition

Phosphor Bronze Chemical Composition (%)
ASTM	JIS	Din	BS	Cu	Sn	P	Zn	Fe	Pb
C50500	-	-	-	Rem	1.0-1.7	0.03-0.35	0.3	0.1	0.005
C51100	-	CuSn4	PB101	Rem	3.5-4.9	0.03-0.05	0.3	0.1	0.05
-	C5191	CuSn6	PB103	Rem	6.0	0.2	-	-	-
-	C5210	CuSn8	-	Rem	8.0	0.2	-	-	-

Tin bronze Chemical Composition (%)
ASTM	Cu	Fe	Ni	Al	Mn	Pb	Si	Sn	S	Zn	Sb	P
C90300	86.0-89.0	0.2	1.0	0.005	-	0.3	0.005	7.5-9.0	0.05	3.0-5.0	0.2	0.05
C95400	≥83.0	3.0-5.0	1.5	10.0-11.5	0.5

Aluminum bronze Chemical Composition (%)
ASTM	Din	Cu	Fe	Pb	Al	Si	Ni	Mn	Zn	Sn	Other
C61000	CuAl8	≥92	≤0.5	≤0.02	6.0-8.5	≤0.1	-	1.5-2.5	≤0.2	≤0.1	≤0.5
C63000	CuAl10Ni5Fe4	≥82	≤3.0	-	≤10.0	-	-	-	-	-	-
C63020	CuAl11Ni6Fe5	≥74.5	4.0-5.5	≤0.03	10.0-11.0	-	4.2-6.0	≤1.5	≤0.3	≤0.25	-

Beryllium copper Chemical Composition (%)
ASTM	Din	Cu	Co	Be	Al	Si	Fe	Ni
C17200	CuBe2	Rem	≥0.2	1.8-2.0	≤0.2	≤0.2	-	-
C17500	CuCo2Be	Rem	2.4-2.7	0.4-0.7	0.2	0.2	0.1	-
C17510	CuNi2Be	Rem	0.3	0.2-0.6	0.2	0.2	0.1	1.4-2.2

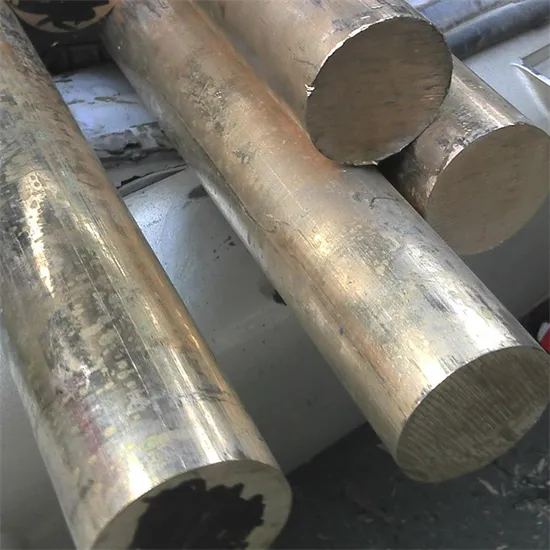

Detailed Photos

Company Profile
SICHUAN LIAOFU SPECIAL STEEL COMPANY.,LTD
Sichuan Liaofu Special Steel Company.,Ltd was established in 2001, specialized in special steel production and inventory as the main business. In 2004, our company Chairman Mr.Mike Guo purchased a batch of advanced equipment for the production of hot rolled and forged products.After several years of development, our company has gradually formed a complete production and operation system of smelting, refining, forging , heat treatment. Meanwhile we began to expand overseas markets and Obtained the national export license and the customs certificate since 2005. In 2007, we concluded the first export order. For satisfying customers' extensive demands,We have set up a sales department for rare metals such as titanium and copper in 2009. We has state-of-the art production lines with leading-edge technology for bearing steel 100Cr6, stainless steel 304 / 316 / Duplex
UNS S31803 and Super Duplex UNS S3276, alloy steel 4130/4140/8620 ,high speed tool T1/M2/M35/M42 and die steel D2/D3/H13/H21/P20,The products covers special steel round, square, flat, wire rod, wire, sheet, pipe, strip and heavy forgings.Produces forged round steel (¢120~850mm) and square steel (120~550mm) of various steel grades. The largest production steel ingot 13T, mainly forged alloy steel. The annual output of forged round can reach 60,000 tons. Recommend Product
We Have State Of The Art Production Lines With Leading Edge Technology For Bearing Steel 100Cr6, Stainless Steel 304 / 316 / Duplex UNS S31803 And Super Duplex UNS S3276, Alloy Steel 4130/4140/8620, High Speed Tool T1/M2/M35/M42 And Die Steel D2/D3/H13/H21/P20. The Products Covers Special Steel Round, Square, Flat, Wire Rod, Wire, Sheet, Pipe, Strip And Heavy Forgings. Produces Forged Round Steel (¢120~850mm) And Square Steel (120~550mm) Of Various Steel Grades.

Alloy Steel	4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6, 1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236
Tool Steel	H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
Bearing Steel	GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel	9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159
Stainless Steel	321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057
