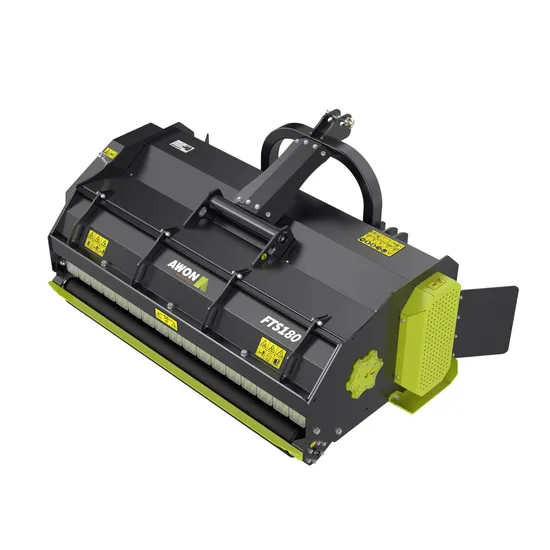

Tractor Mounted Wood Branch Chipper Grass Mulcher Shredder Branch Crushing

Product Description

FTS series provide a perfect solution - picking up the pruning with a pick-up reel at ground level and lifting and carrying them inside the mulching chamber.
You don't need to remove pruning anymore. When you use a FTS pick-up mulcher it will be mulched finely, through a fine mulching grid. This results in a fast biodegradation, within one season.
* Mounting on 3-point hitch at the rear of the tractor linkage Cat.1,2 * The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine
* The double-covered body guarantees durability. * Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions * Easy, on-site, flail knife replacement * Low noise operation * Perfect ground following and even cutting height * Reinforced flail shaft's housing and bearings located internally * Bearing protection and lubrication system * PTO shaft as standard * Heavy-duty forged T-blade provides extreme durability even with the thick branches
pick-up reel at ground level and lifting and carrying them inside the mulching chamber

Standard Equipment • Shaft with double flail spiral
• Overrunning clutch integrated with gearbox
• Mechanical safety breakaway device
• Mowing height adjustment with ground following bar
• Wide-angle PTO shaft
• Automatic tension of V-belts
•Heavy-duty forged T-blade
•3-point hitch

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power
FTS140	1645*1372*987	758	1400	540	18	80-120
FTS160	1845*1372*987	822	1600	540	22	80-120
FTS180	2045*1372*987	898	1800	540	24	80-120

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!
