ISO3108 Astma1023 100/150/200/300t Wire Rope Sling Chain Shackle Automatical Hydraulic Horizontal Tensile Testing Machine

Product Description

Product Parameters
Overview:

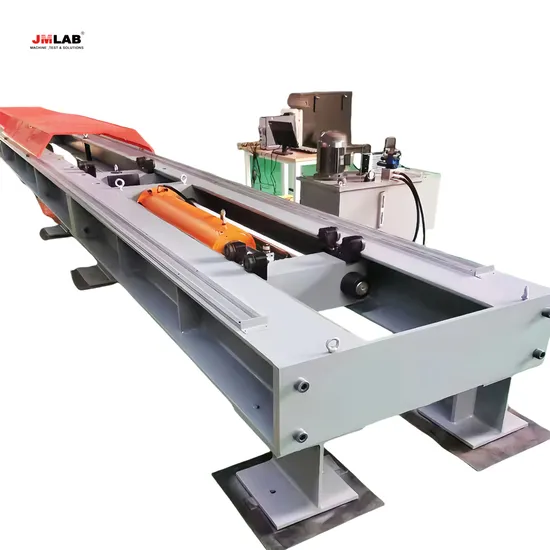

WAL series computer-controlled electro-hydraulic servo horizontal tensile testing machine can be used for tensile loading, destruction load testing and research of flexible specimens, such as anchor chains and accessories, shackles, slings, marine anchors, high-strength steel wire ropes, fishing chains, and high-strength circular chains.
Test standards:
Complies with Chinese standard, British standard, American standard, German standard, Australian standard, Japanese standard, Italian standard, Russian standard, European standard/GB, ISO, JIS, ASTM, DIN, BS, EN and other standards;
DIN763; DIN764; DIN766; DIN5685;
API Spec 5D Specfication for Drill Pipe
API Spec 7K Drilling and Well Servicing Equipment
API Spec 8C Specification for Drilling and Production Hoisting Equipment
Astm80 Standard Link Chain; Nacm90 Standard Link Chain; Nacm96 Standard Link Chain;
Korean Standard Link Chain; Norwegian Standard Link Chain; RR-C-271D
IS0 1704:1991 Marine Anchor Chain
GB/T549 Electrical Welded Anchor Chains
JT/T100 Anchor Chains for Buoys and Mooring System
Safety Device:
Mechanical protection:
1. Oil cylinder limit protection
2. Hydraulic overload overflow protection
3. Test force overload protection
4. Automatic shutdown protection for test break
5. Automatic shutdown protection at the end of the test
6. Phase sequence protection
7. Overcurrent protection
Hydraulic station protection:
1. Oil temperature control (automatic shutdown when oil temperature is overheated)
2. Oil filter blockage alarm
3. Liquid level alarm
4. Cooling method: air-cooling + water-cooling (oil, water heat exchanger)

Model	WAL-3000D
Maximum test force (kN)	3000 (other test force optional)
Test force indication accuracy	Class 1
Load range	2%~100%F·S
Load resolution (kN)	1/500000
Displacement resolution (mm)	0.01mm
Maximum stretching space (mm)	8000mm
Maximum cylinder stroke (mm)	1000mm
Effective test width	800mm
Minimum adjustment step	500mm
Test fixture	Pin type fixture (customized according to test specimens)

Detailed Photos

Company Profile
Packaging & Shipping
FAQ 1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of professional Manufacturers like Universal Testing machines, Fatigue Testing Machines,Torsion And Bending Testing Machines,Friction And Wear Testing Machines,Package Testers, Texture Analyzer,Plastic Rubber Testers, Adhesive testers and other testing Equipment.. .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an E-mail or call ,we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What's the delivery term?
1-3 working days for the standard machine if we have stock in the warehouse. If there is no stock, normally, the delivery time is 3-15 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send the operation manual and video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
5. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
