Factory Hot Sale 2000W 1500W 1000W Handheld Fiber Laser Welding Machine

Product Description

Product Description
APPLICATION :
Handheld laser soldering machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, including copper - brass, titanium - molybdenum, titanium - gold, nickel - copper, and so on.
Handheld laser soldering machine is widely used in the kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, battery manufacturing, craft gifts, household and other industries.
Detailed Photos
Raycus Laser Source and S&A Water Chiller
Raycus is largest manufacturer of laser source in China , can weld carbon steel , stainless steel and aluminium etc . Good quality
and long life . Suitablef for 24 hours continuous working.

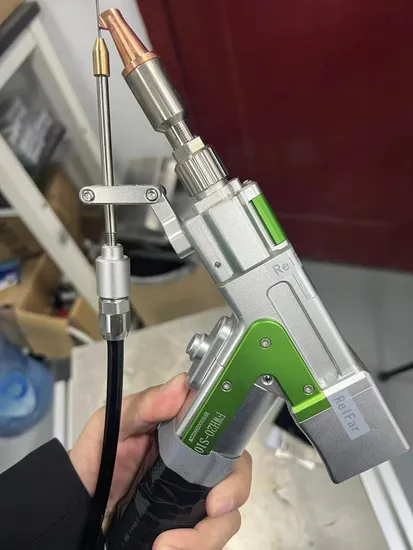

Relfar Laser Welding Head
With hot temperature alarm and double protections lens , very sale . small and light , easy to operation.
Relfar Control Sytsem
Different welding or cleaning parameters is saved on system , when you weld metal , you need only choose it . Also support multi languages , such as English , Polish , Spainish , Russian , Korean , Japanese , Portugal etc .

France Schineider Electric Parts
European CE standard , good quality and long lifetime .
How to change welding to cleaning ?
laser cleaning parts ( nozzle and lens ) will be sent with machine , you need only change welding nozzle and lens to cleaning nozzle and lens . then change welding mode to cleaning mode on system .

Product Parameters

No.	Model	KW1000M	KW1500M	KW2000M
I.Laser source		Raycus / MAX	Raycus / MAX	Raycus / MAX
1.	Output Power (w)	1000w	1500w	2000w 3000w
2.	Center wavelength	1080nm ±5
3.	Fiber Cable length	10m
II.Water Cooling		1.5P	2P	2.5P
III.Laser head (Relfar ),standard model. Qilin /WSX (Optional)
1	Spot size (mm)	1.5/1.8/2.0 (XINGHONG)
		0.2-5mm adjustable (Relfar / Qilin)
		0-4mm adjustable (WSX)
2	Working Mode	"O"(XINGHONG)
		dot/line/circle (Relfar / Qilin)
		"Z"(WSX)
3	Protective lens	D20*2
4	Auto Wire-feeder	Standard
IV. Gas		N2/Ar
V.Total Power Consumption		7.5KW	8.5KW	10KW
VI.Voltage		220±20% VAC 50/60Hz	380±20% V AC 50/60Hz
VII.Dimension (CM)		62.5*174.6*109	62.5*175.6*124

Packaging & Shipping
Wooden box package , safedelivery


Certifications
Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
