CNC Double Grinding Head Cylindrical Grinding Machine Mk-F50

Product Description

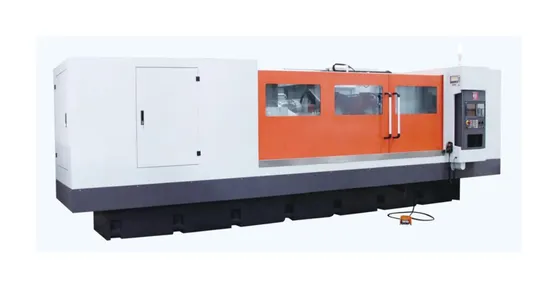

CNC double grinding head cylindrical grinding machine MK-F50

Main functions and features:
1.MK- F50x (1000- 3000) CNC (end face) cylindrical grinder is a large-scale CNC machine tool product designed, developed and manufactured by our company. This series of machine tools is suitable for batch or large quantities of large shaft parts.For mass production occasions, the process of rough and fine grinding-secondary clamping combined grinding and the combined grinding of profile grinding wheels and ordinary grinding wheels is solved.
2.Adopt Siemens 828 three-axis two-linkage CNC system. The feed of the double grinding wheel frame (X1. X2 axis) and the movement of the worktable (Z axis) are respectively controlled by AC servo motors.
3.The grinding wheel spindle adopts a high-rigidity dynamic and static pressure spindle system, which has the characteristics of high rotation accuracy and strong load-bearing capacity. The grinding wheel linear speed reaches 45m/s.
4.The headstock (C-axis) is driven by a servo motor to control the synchronous pulley to ensure stable and reliable grinding. Automatic loading and unloading can be realized.
5.The tailstock adopts servo constant force automatic tightening mechanism. The tightening force is adjustable to ensure grinding accuracy.
6.A variety of diamond dressing devices can be selected for grinding wheel dressing to achieve precise dressing of complex grinding wheel surfaces and automatic compensation.
7.Through the axial positioning of the end face probe, two sets of cylindrical measuring instruments control two cylindrical grinding locations respectively, realizing closed-loop control of outer diameter grinding.
Technical Parameters:

Model No.	MK-F50/(1000-1500-2000-3000)
Item No.
Specifications
Center height	270 mm
Grinding diameter	Ø30- Ø500mm
Diameter of rotation	Ø540 mm
Max.grinding length	1000 1500 2000 3000 mm
Center distance	1100 1100 2100 3100 mm
Max.weight of workpiece	1000 kg
Headstock
Morse taper	MT6
speed	15~500 r/min
Tail stock
Morse taper	MT6
Sleeve movement	70 mm
Wheel
Wheel size	A:Ø750x100x305 B:Ø750x75x305
Linear speed	≤45m/s
Wheel stock(A B)
Max.movement	400mm
Spindle tilt Angle	0°
Spindle motor power	15 kw
Worktable
Type	Adjustable taper
Max.turning Angle of upper table
Minimun resolution of drive servo motor	0.001 mm
Total power	40 kw
Roundness	≤0.003 mm
Cylindricity	≤0.008/1000 mm
Surface roughness	≤Ra 0.32um

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
