Hard Plastic Double Shaft Shredder

Product Description

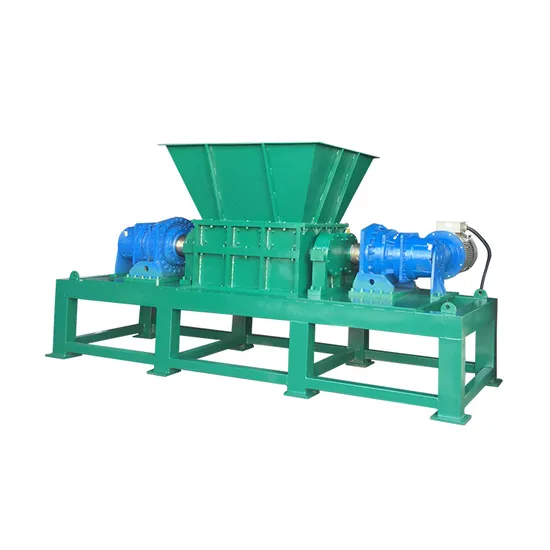

High Efficient Double Shaft Shredder (TS-1200) is fit for big flakes, basket materials, pipes, woods, tires, and big roll of film which can not be crushed by single shaft shredder.

2.Thick precision plate structure, rotation shaft with large six angles, large diameter strong hopper, make sure the large materials in.

3.In thickness, shape, order processing, we adopt unique design rotary knife. The knife has the advantages of high shear force, sharp blade, which can improve shredding efficiency.

4.PLC controller: when the materials are over the limit, it can stop the machine to protect itself.

5.Low speed rotation, low noise and less dust.

6.Blades are made of special alloy steel, strong and durable.
Quick Details
Condition: New
Place of Origin: Guangdong, China (Mainland)
Brand Name: QIANGYE
Model Number: TS-1200
Use: Waste Plastic Crusher
Plastic Type: All kind of plastic, tire
Shaft Design: Double
Power: 22kw X2 set
Capacity: 100-1200kg/h
Voltage: 220V/380V
Power(W): 22kw X2 set
Dimension(L*W*H): 3850X1200X2160mm
Certification: CE ISO
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 Months
Export experience: 22 years
Rotor diameter: 1200X760mm
Delivery time: 10-20 days
Feeding hopper: 1350X1200mm
Design: OEM/ODM order is welcome
MOQ: 1 set
Automatic Grade: Automatic
Function: Shredding, crushing
Used for: Waste plastic/rubber/tire
Packaging & Delivery Packaging Details Delivery Time

1. Outside package: Standard export wooden cases 2. Inner package: Stretch film

10-20 days after receiving the deposit

Model	Rotor diameter (mm)	Motor power(KW)	Feeding hopper(mm)	Dimension(mm)
TS-600	600X560mm	5.5kw X2 set	800X600mm	2500X700X1800mm
TS-1200	1200X760mm	22kw X2 set	1350X1200mm	3850X1200X2160mm
TS-1500	1480X860mm	55kw X2 set	2000X1280mm	3895X1270X2175mm
