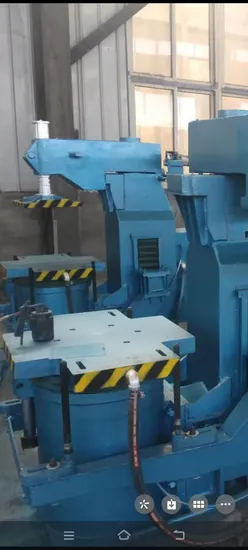

Advanced Air Cushion Micro-Vibration Molding Machine for Precision Sand Casting

Product Description

Product Introduction:
Full Automatic Horizontal Flaskless Molding Line is mainly suitable for moulding production of valves, mechanical parts, automobile parts, hydraulic parts, pipe fittings and fastening these parts, also suitable for ductile iron,gray iron, malleable cast iron and non-ferrous metails these materials,with advantages of high production efficiency, low investment, quick effect, energy-saving and environmental protection. This moulding line mainly consists of moulding machine, pouring line, cooling line, castings conveying system, and electric control, hydraulic control and pneunatic control system, which can realize full automatic control of sand feeding, moulding, pouring, cooling and castings movement.

Main characteristics as follows:
1. Horizontal parting, suspended shot sand, horizontal casting.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
2. Adjustable castings height and compaction pressure
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
3. Convenient template replacement.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
4. Failure display
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
5. High reliability of hydraulic, pneumatic and electrical system.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
6. Easier, more convenient and safer for core setting
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
7. Adopt servo hydraulic system to save energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy. technical parameter:

Sand Molding Machine

Z143

Z144

Z145

Z146

Z147

Z148(small)

Z148(big)

Z149

Z1410

Z1411

Z1412

Z1413

Z1415

table size

560*420mm

560*420mm

700*600mm

800*650mm

880*700mm

1000*800mm

1100*800mm

1200*800mm

1400*1030mm

1500*1050mm

1700*1100mm

2000*1200mm

2400*1200mm

starting stoke

150mm

150mm

200mm

250mm

250mm

300mm

350mm

350mm

400mm

400mm

450mm

500mm

500mm

suppressing strength

4200kg

4200kg

9000kg

10500kg

12000kg

13000kg

16500kg

19000kg

29000kg

35000kg

38000kg

40000kg

50000kg

earthquake strength

150kg

150kg

350kg

450kg

550kg

650kg

850kg

1000kg

1600kg

2000kg

2500kg

3000kg

5000kg

machine weight

750kg

680kg

1500kg

1880kg

2100kg

3200kg

4500kg

4900kg

6000kg

7200kg

9000kg

11000kg

14500kg
